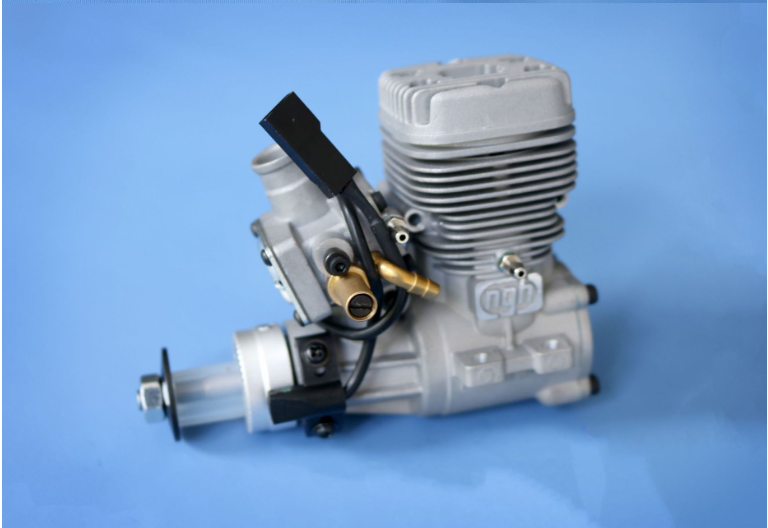

NGH GT9Pro RC Fixed-wing Aircraft Two-stroke 9cc Gasoline Single-cylinder Engine Repair Parts
ngh model aircraft engine GT9pro two-stroke 9cc gasoline single-cylinder fixed multi-rotor drone engine
GT9-Pro is the second generation of the GT9 engine, with more powerful power, good stability and easy starting. GT9-Pro is specially designed for RC beginners and is very suitable for 40-52 level training aircraft. Safe use will bring you a pleasant flying experience.
The carburetor interface is insulated from the body by Teflon, which is conducive to the hot start of the engine; the internal diaphragm pump of the carburetor is driven by the cylinder block, and sufficient fuel can be provided regardless of the aircraft's attitude and the position of the fuel tank; the integral bronze connecting rod is used. When the engine is fully run-in, the bronze connecting rod will be more durable, and its wear resistance and durability far exceed the high-quality needle connecting rod; the cylinder liner is made of wear-resistant ductile iron, and the roundness tolerance of the inner hole of the cylinder body is within 0.01mm, which is much higher than the roundness tolerance of the inner hole of the aluminum alloy chrome-plated cylinder liner of 0.03mm. In principle, the aluminum alloy chrome-plated cylinder liner does not meet the EU environmental protection requirements; the engine intake system adopts the crankshaft intake method, which has a longer intake opening and closing time than the reed valve intake method. The reed valve intake method has different elastic delays of the reed itself and the negative pressure of the crankcase, which causes inaccurate intake opening and closing times.
GT9-Pro Product Features
*Small gasoline engine among similar products, can replace 40-52 grade methanol engine
*Small, compact and powerful
*Sturdy and durable integral bronze connecting rod
*Special carburetor, designed for NGH GT9-Pro
*RCEXL automatic advance micro ignition system made for NGH
*High quality bearings

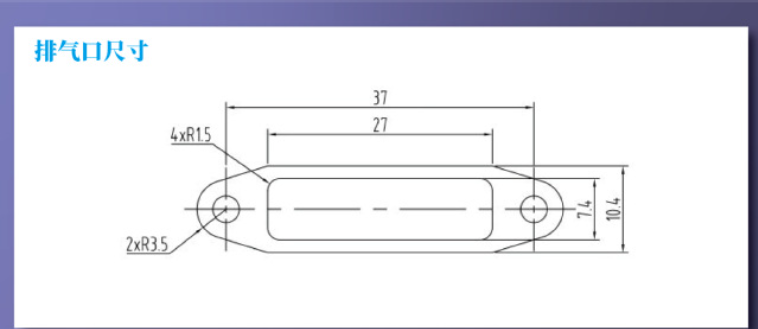

Exhaust port size:
Technical parameters:
Displacement: 9.0cc
Cylinder diameter: 23.3mm
Stroke: 21mm
Practical speed range: 2000-13500rpm
Output power: 1.2HP/13000rpm
Thrust: 3.8
Engine weight: 435g
Igniter weight: 100g
Igniter power supply: DC4.8V-8.4V, 1000mAh
Recommended propellers: 11x6, 11x7, 12x6
Fuel: 90# gasoline + 2T lubricating oil
Lubrication ratio: 20:1
