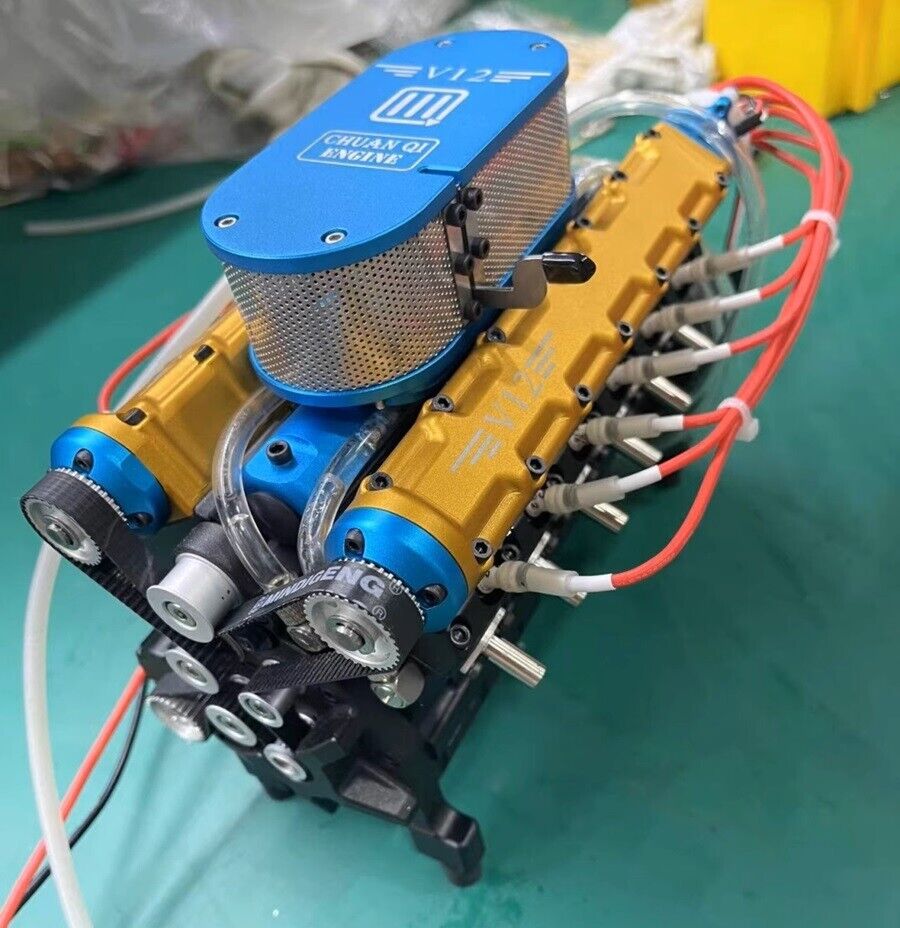

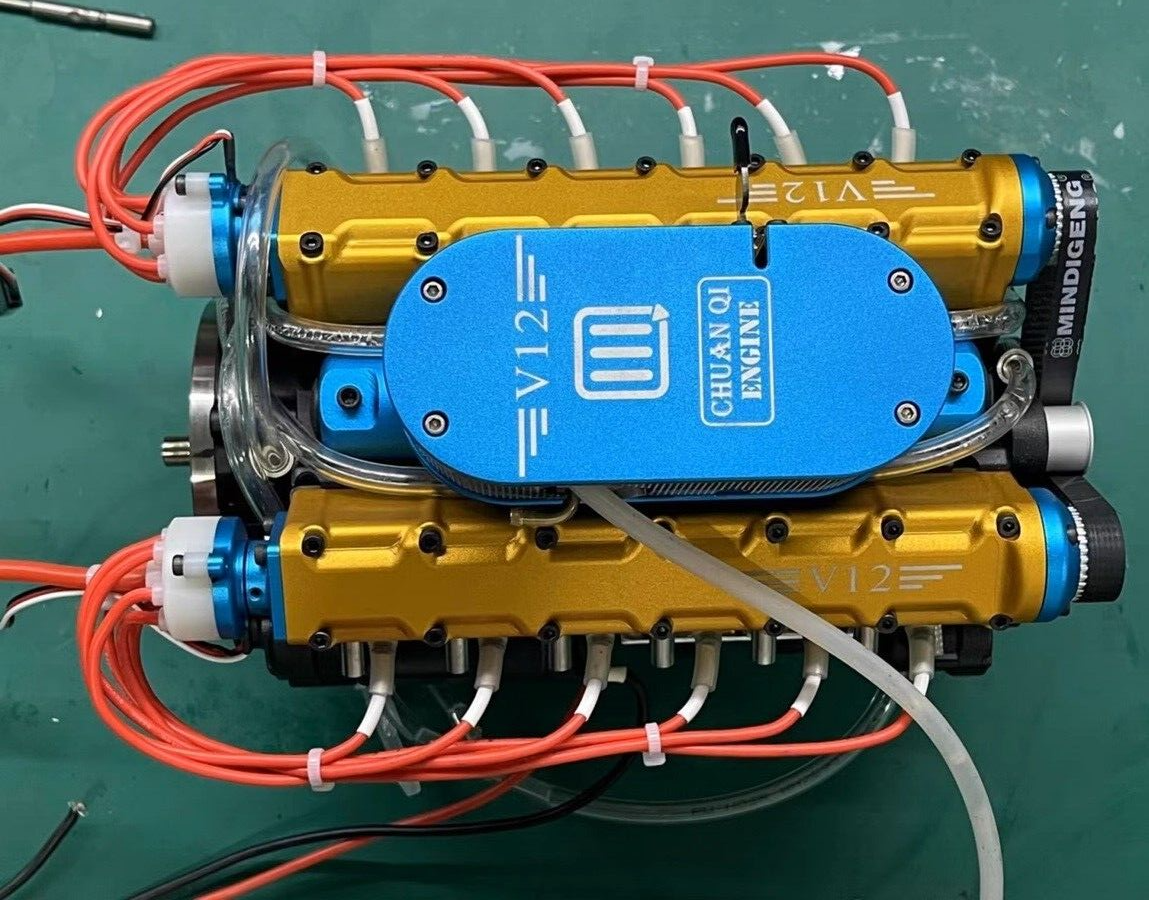

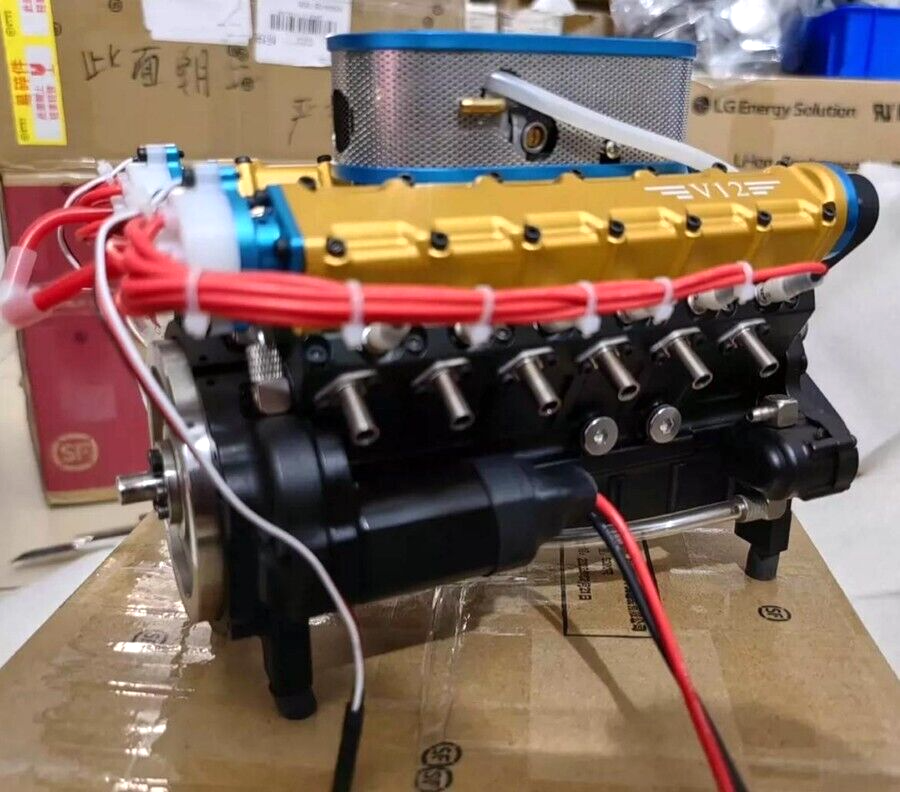

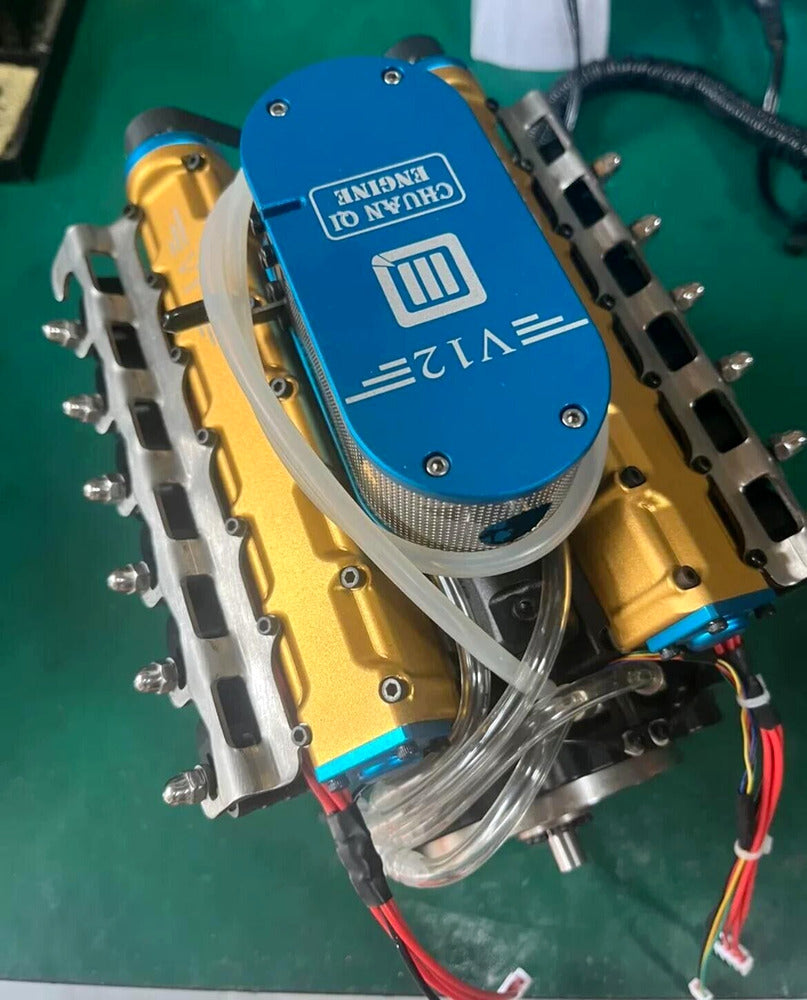

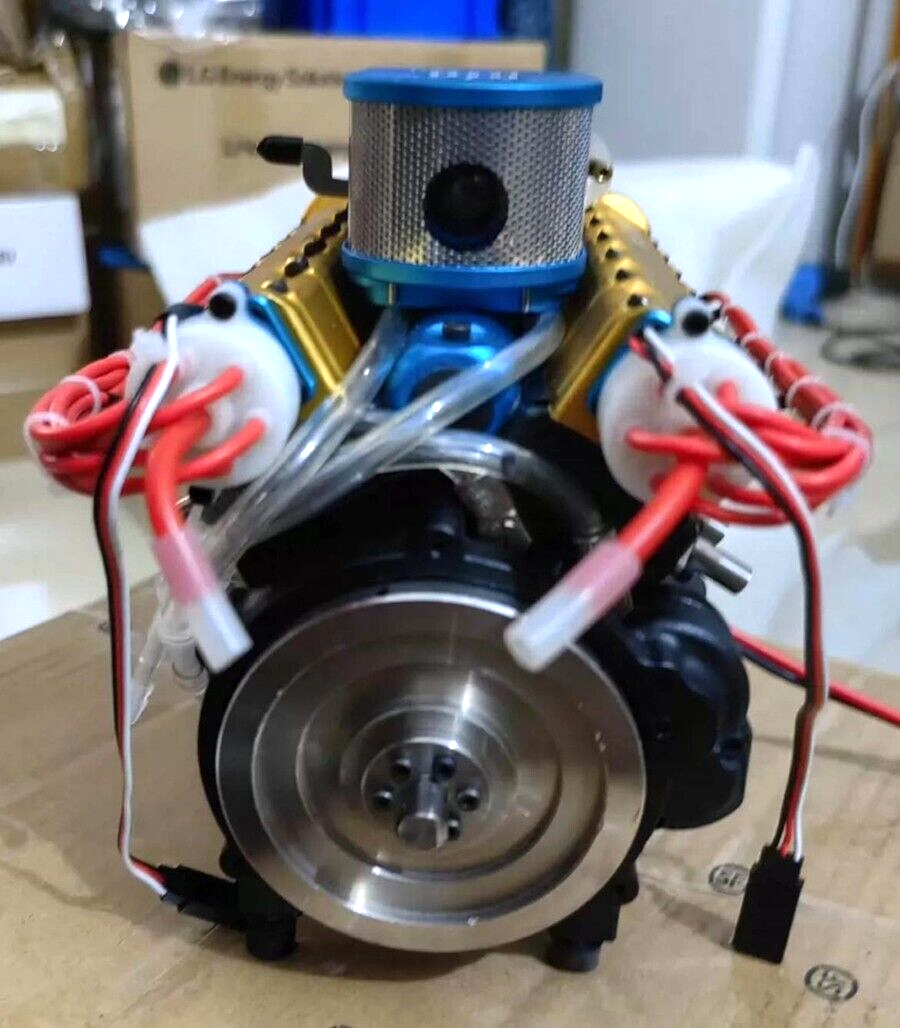

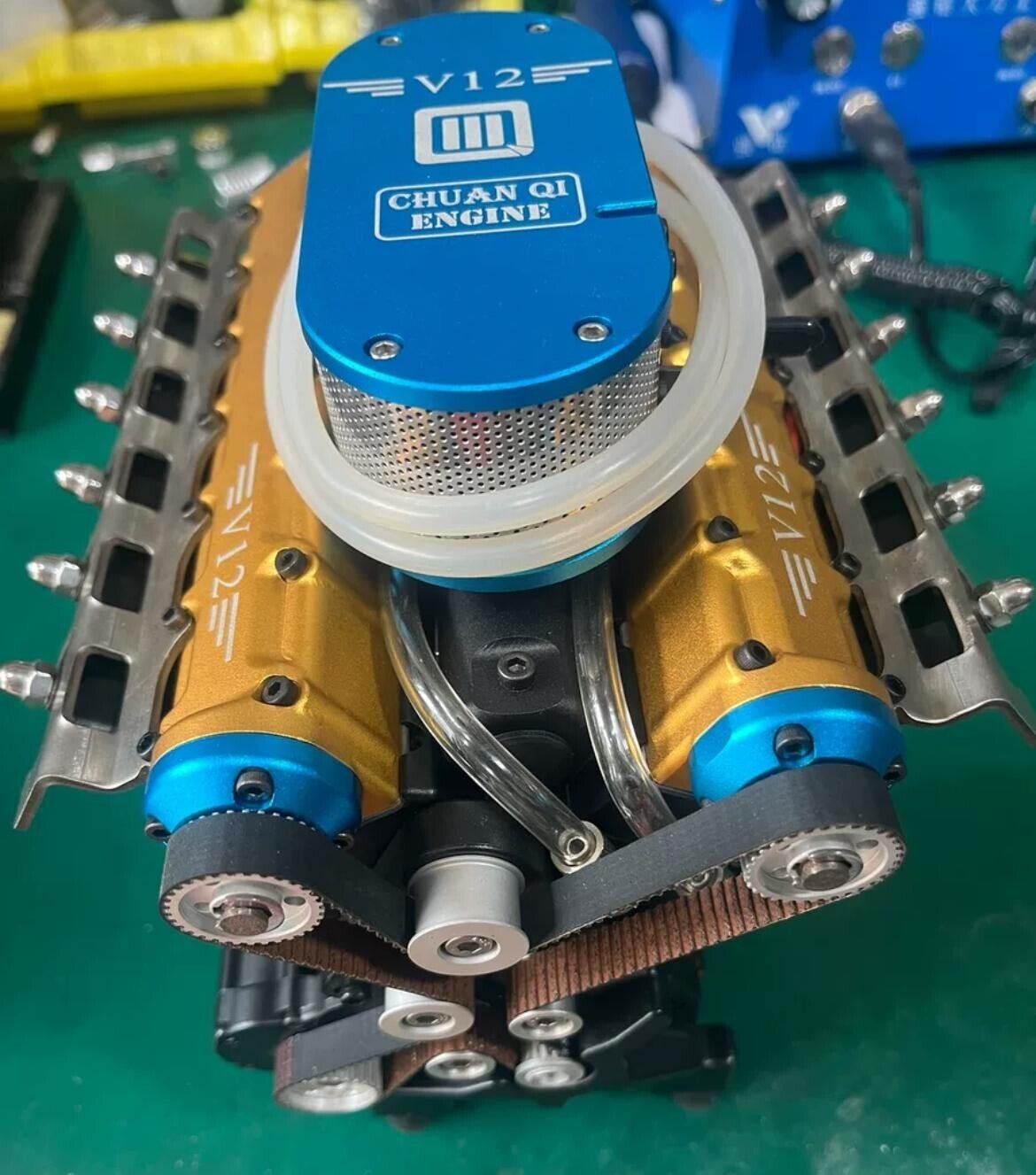

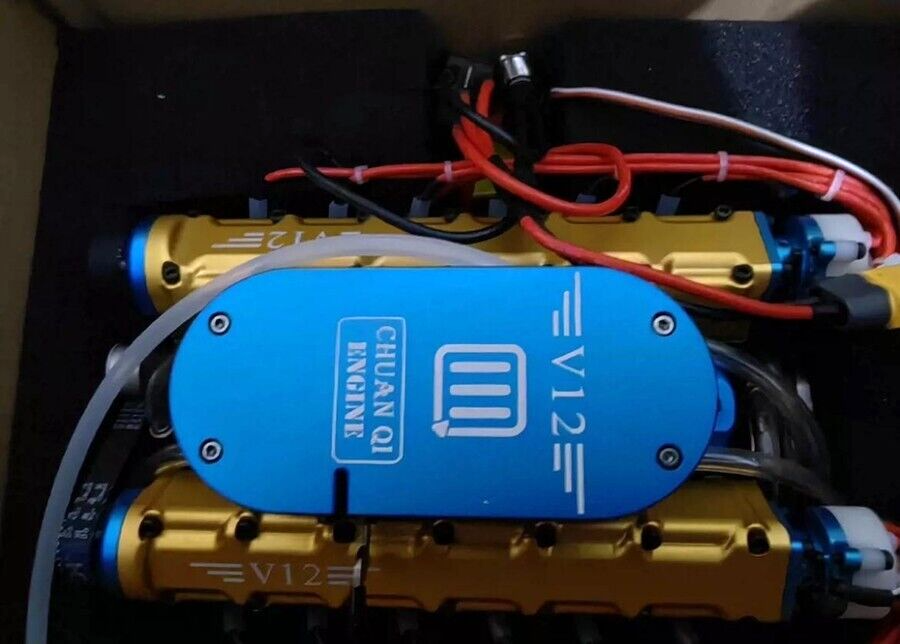

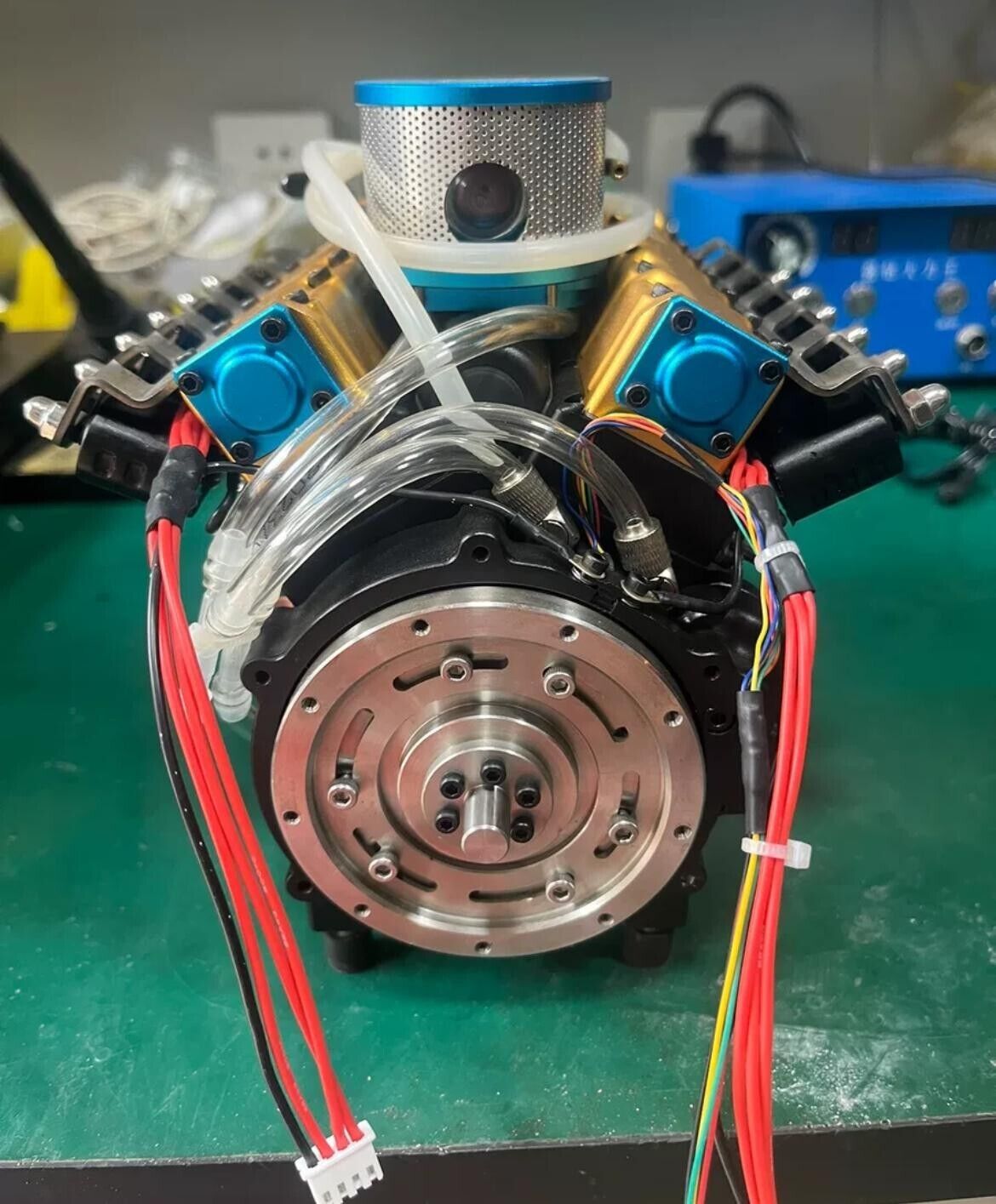

CHUAN QI 49.89cc SOHC V12 4-Stroke Gasoline Engine
Tax included.

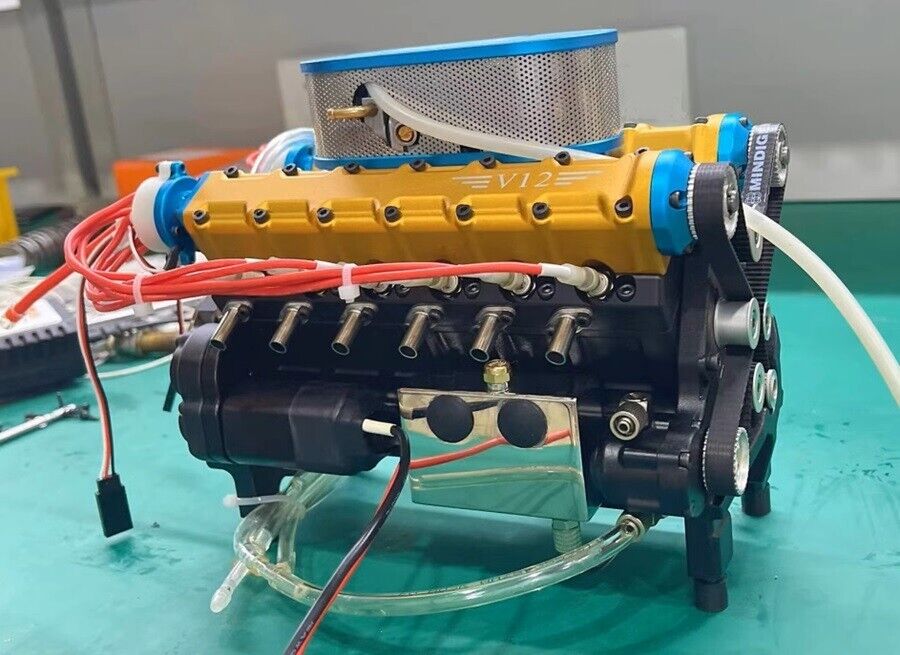

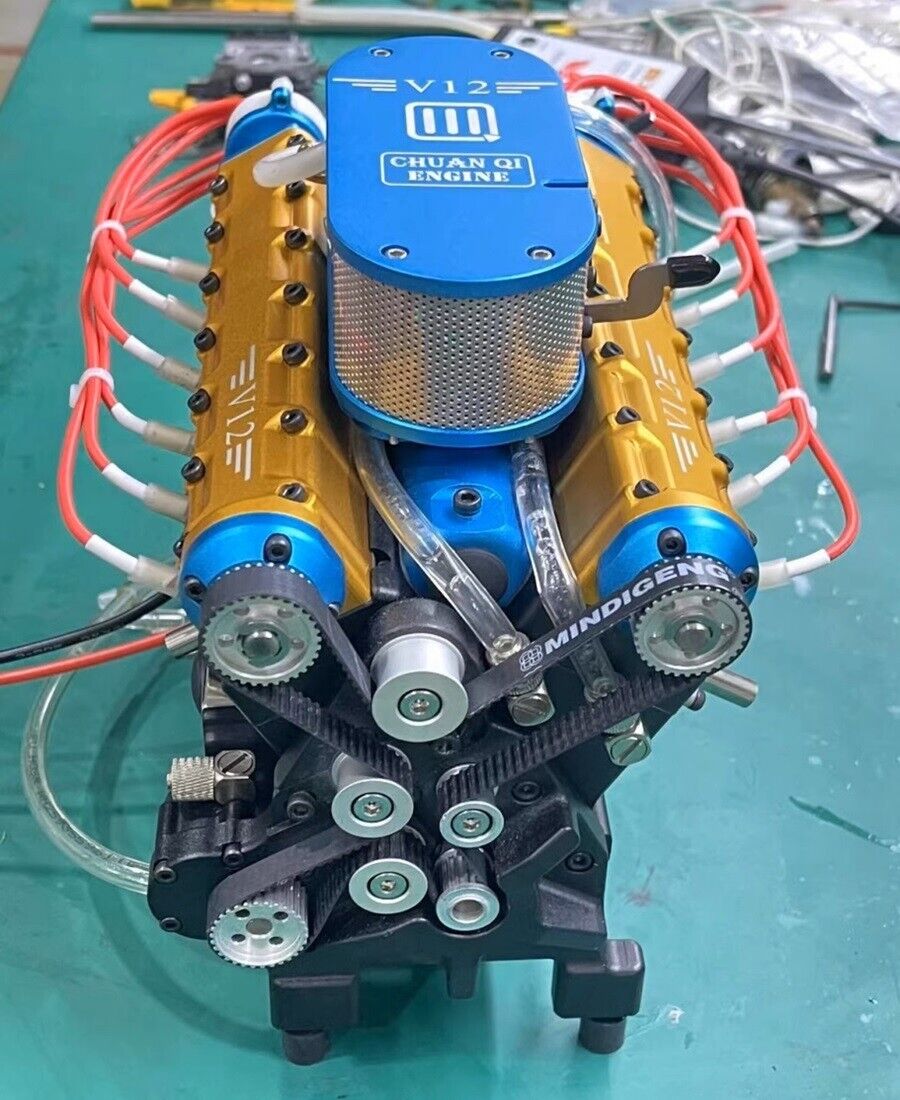

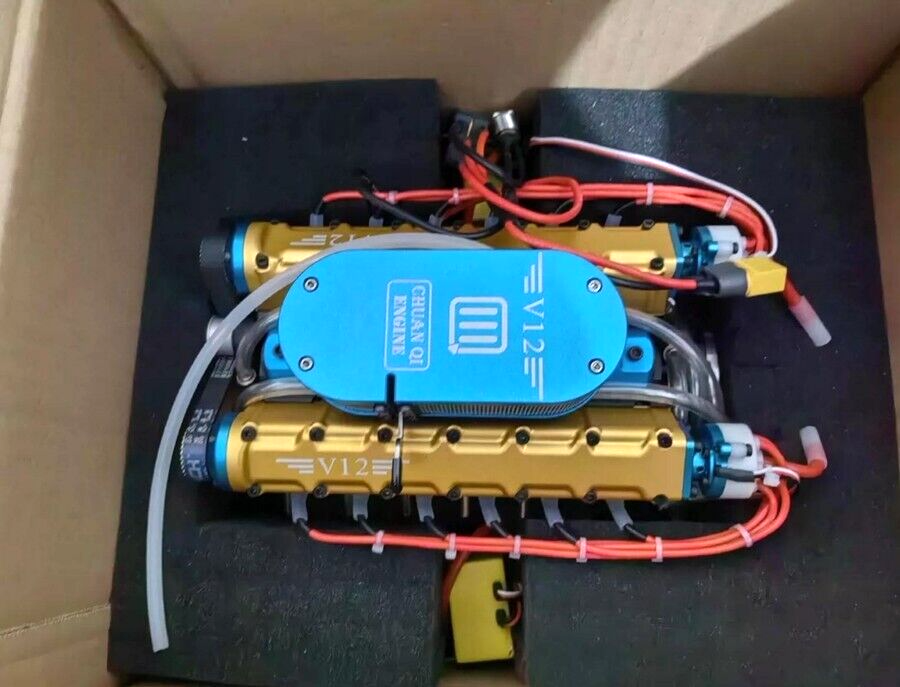

CHUAN QI 49.89cc SOHC V12 4-Stroke Gasoline Engine
Specifications:
V12 SOHC Gasoline powered Engine
Single Over Head Cams
Size: length 210mm x width 116mm x height 159mm.
Stroke: .7 in
Bore: .66 in
Single bevel ductile iron piston rings.
Displacement: 49.89cc.
Firing Order: 1-9-4-11-2-7-6-10-3-8-5-12
RPM Range: 3,000 ~ 9,000 + rpm
Dry water-cooled, side-mounted high-flow gear water pump.
Splash oil passage lubrication.
sohc overhead cam valve train + synchronous belt drive.
480 high-torque motor + gear reduction set electric start.
Vigorous carburetor + air filter cover.
Crankshaft 7-point bearing steel sleeve support.
One-Piece Formed and Fully Supported Crankshaft
2 Rings per Piston
Piston: Aluminum Alloy, Dual Ring
Ring: 1 × Ductile Ring & 1 × Fluorine Rubber Ring
Pressed in Steel Cylinder Sleeves
Brushed Starter Motor Stainless Steel Oil Separator
Weight: 4kg
Ignition and Electric Start Electric Range 12V
Gears, crankshaft, camshafts, cylinder sleeve are made of steel.
Engine block, pistons, piston rods are made of aluminum alloy.
Valve springs made of quality spring steel
