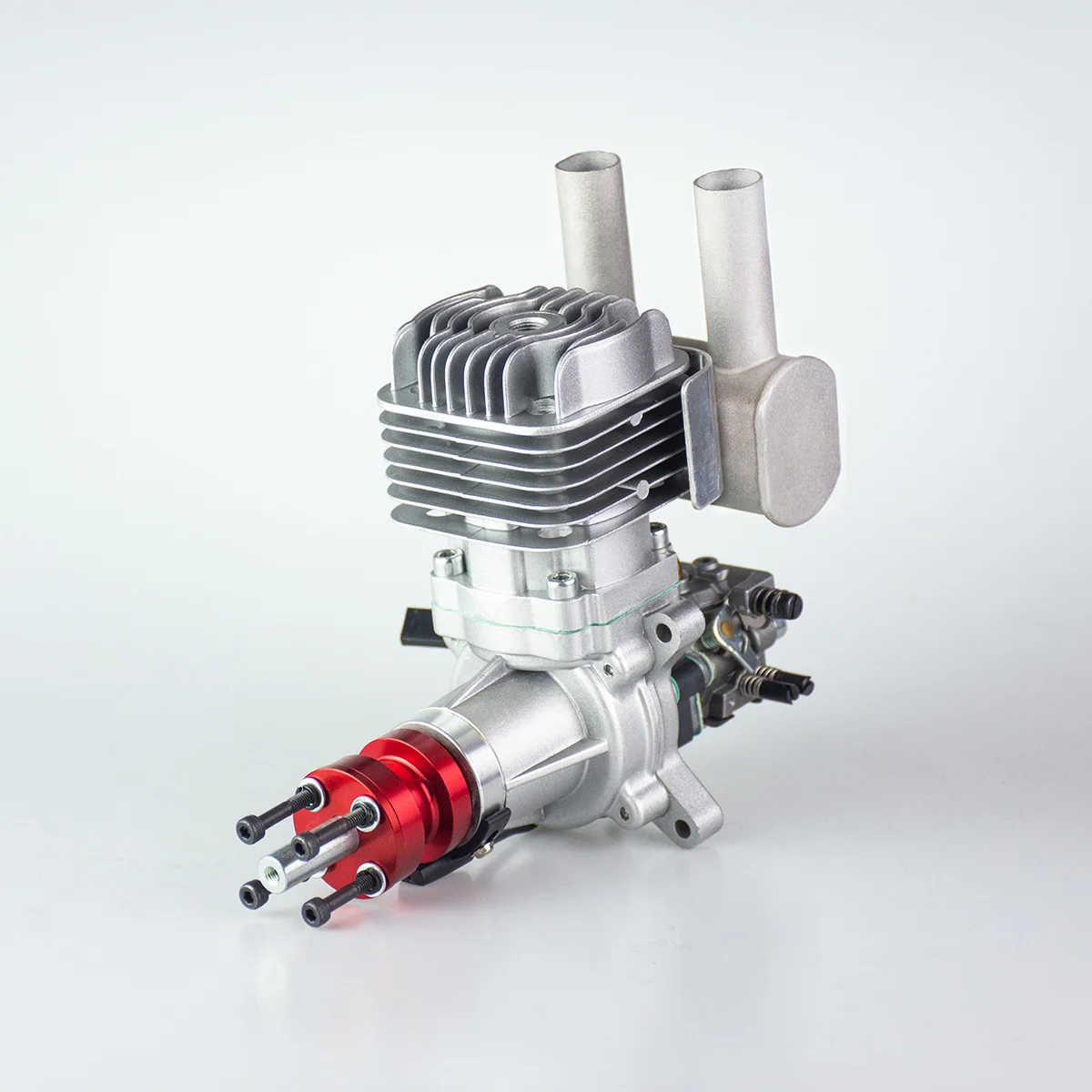

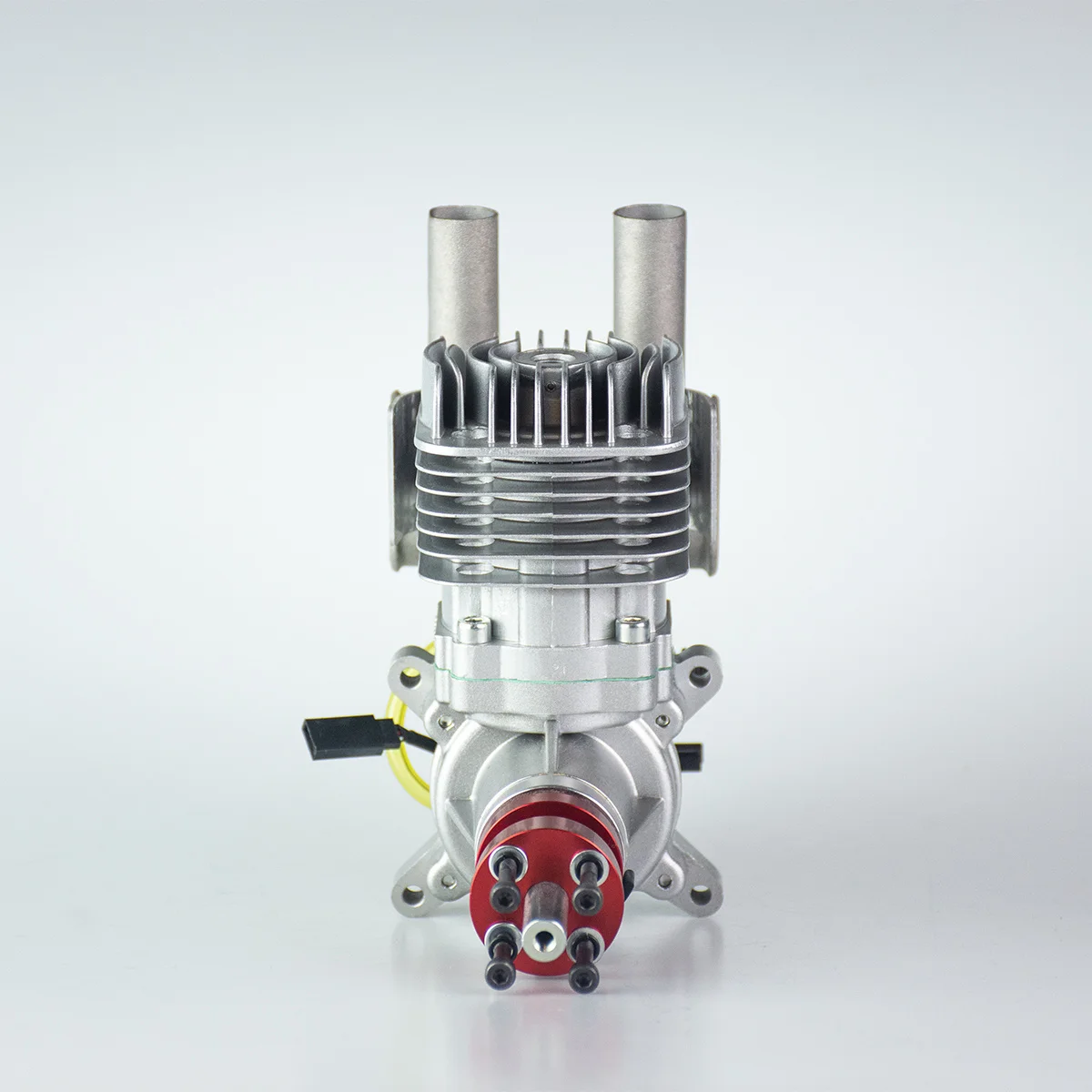

RCGF 35CC Gasoline Engine for RC Fixed Wing Aircraft
Brand Name : RCGF
Model Number : 35CC RE
-
Type : 2 cycle piston valve type gasoline engine for airplane
-
-
Piston displacement Cylinder (cc) : 35cc (2.13 cu in)
-
-
Bore x Stroke (mm): 1.53 in(39mm) x 1.18 in (30mm)
-
-
Carburetor : Walbro
-
-
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
-
-
Power supply: 4.8-8.4V
-
-
Maximum Output :4.1HP@9000
-
-
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
-
-
speed rang : 1500-9000rpm
-
-
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
-
(90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
-
-
Lubrication Oil : 2 cycle engine oil
-
-
Propeller : 19X8 7900rpm (Standard Two leafs prop)
-
-
Suggested Propellers: 19x8 & 20x8,20X10
-
-
Suggested Break-in Prop: 19x8
-
-
Sparking plug: NGK CM6 Type
-
-
Cooling System : Air Cooled
-
Engine: 2.03 lb (923 g)
-
-
Muffler: 3.4 oz (97 g)
-
-
Ignition Module: 4.4 oz (125 g)
-
-
Total: Weight: 2.52 lb (1145 g)
-
-
-
-
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
-
-
Gasoline/Oil Mix: 30:1
-
-
Replacement Spark Plug: NGK CM6 or equivalent
-
-
Idle Speed: 1800 rpm/min
-
-
Static Thrust:
-
-
19.9 lb (9 kg) @ 328 ft (100 m) altitude
-
-
19.0 lb (8.6kg) @ 5,900 ft (1800 m) altitude
