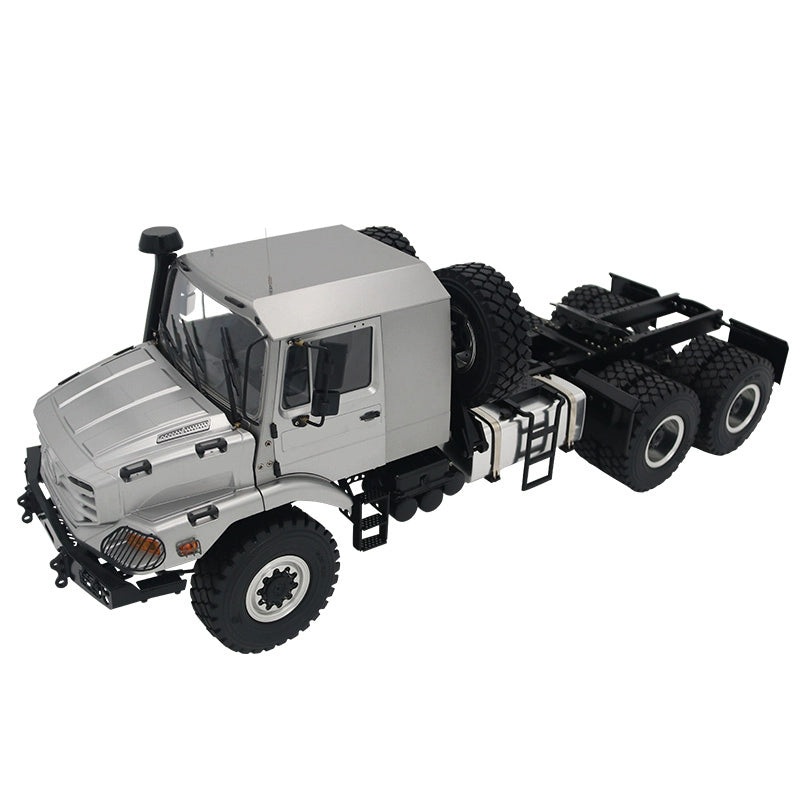

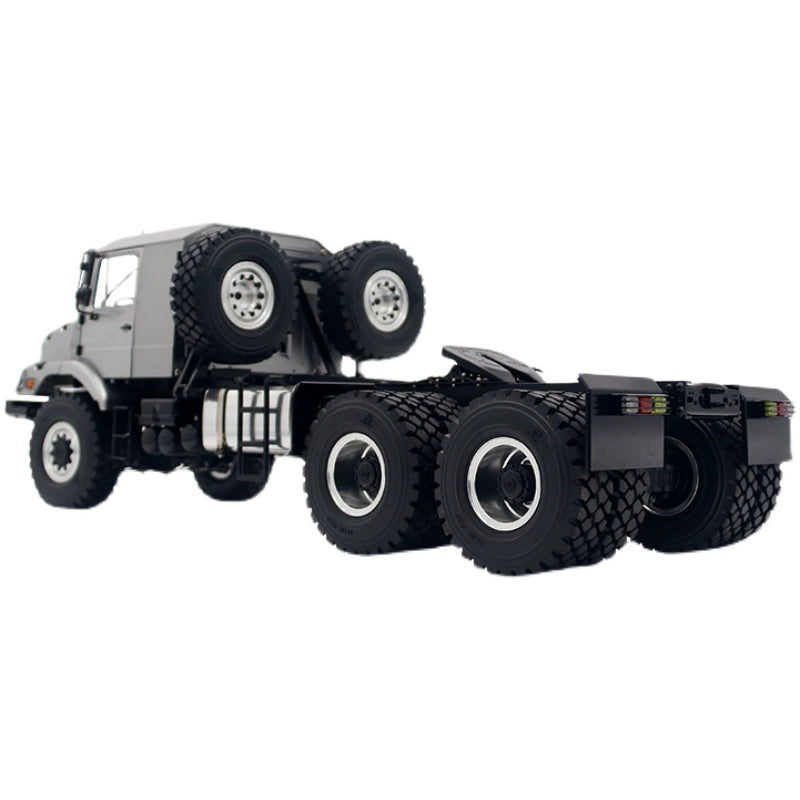

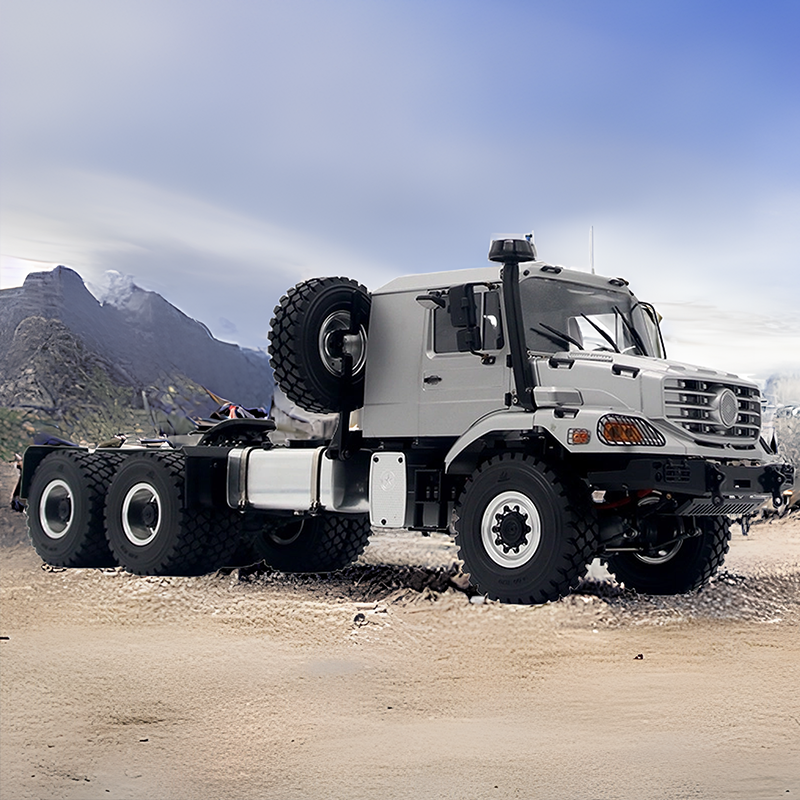

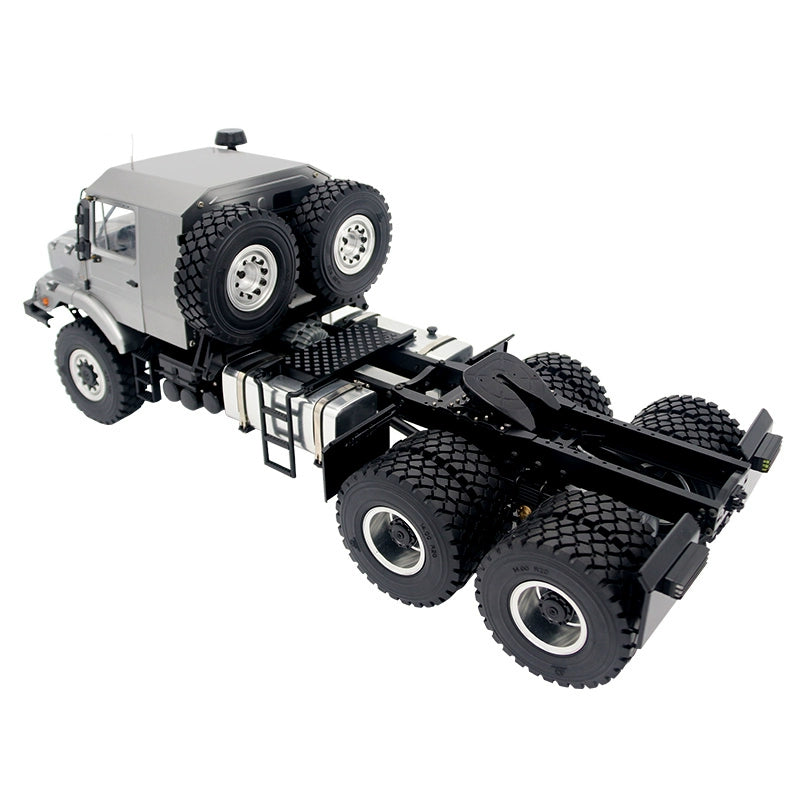

JDM-157 1/14 6x6 Metal Chassis Remote Control Off-Road Trailer RTR

JDM

  • $1,239.00
Sendado kalkulita ĉe la kaso.


JDM-157 1/14 6x6 Metal Chassis Remote Control Off-Road Trailer RTR
Ratio: 1:14

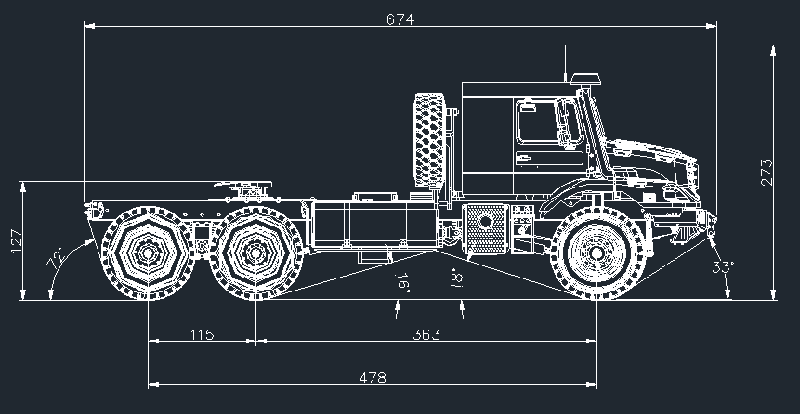

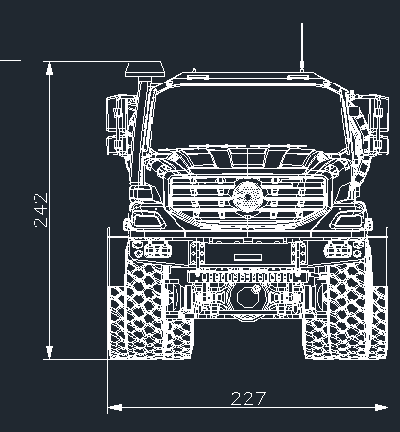

Size: Length 674, Width 227, Height 242 (excluding antenna 273), Unit MM

Wheelbase: Total wheelbase 478, Front axle to middle axle 363, Middle axle to rear axle 115, Unit MM

Front shock absorber travel: 20 MM

Gearbox: All-metal simulated planetary two-speed gearbox

Axle: Metal axle with lock differential function

Car shell: Plastic simulated hard shell, with interior, openable doors, openable hood, simulated headlights

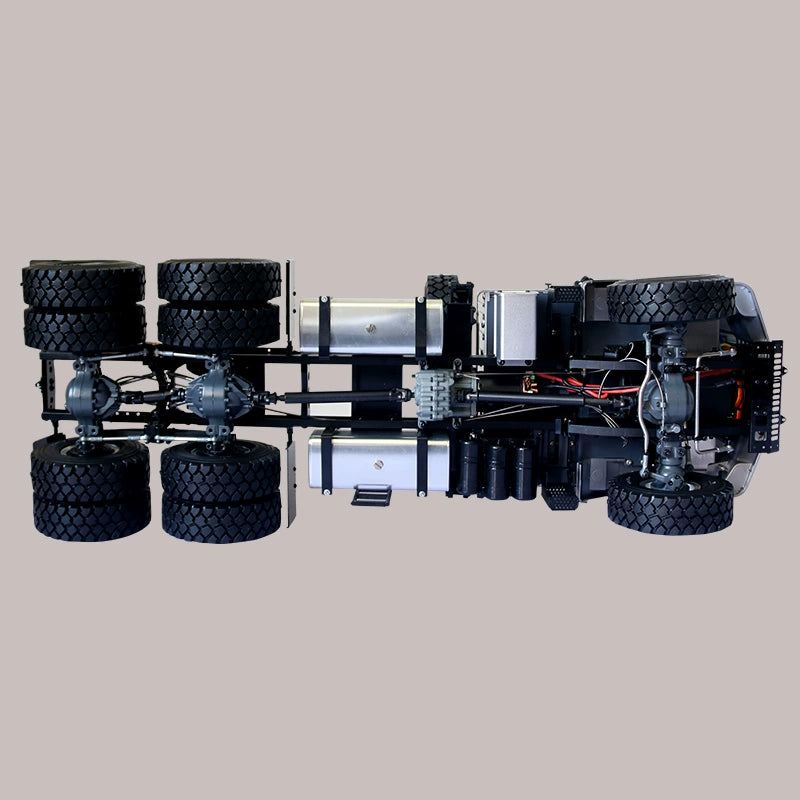

Chassis: Front suspension with anti-roll bar, all metal except battery box, simulated pedals, oil tank, exhaust pipe, spare tire rack, metal beam, metal wheel hub, etc.

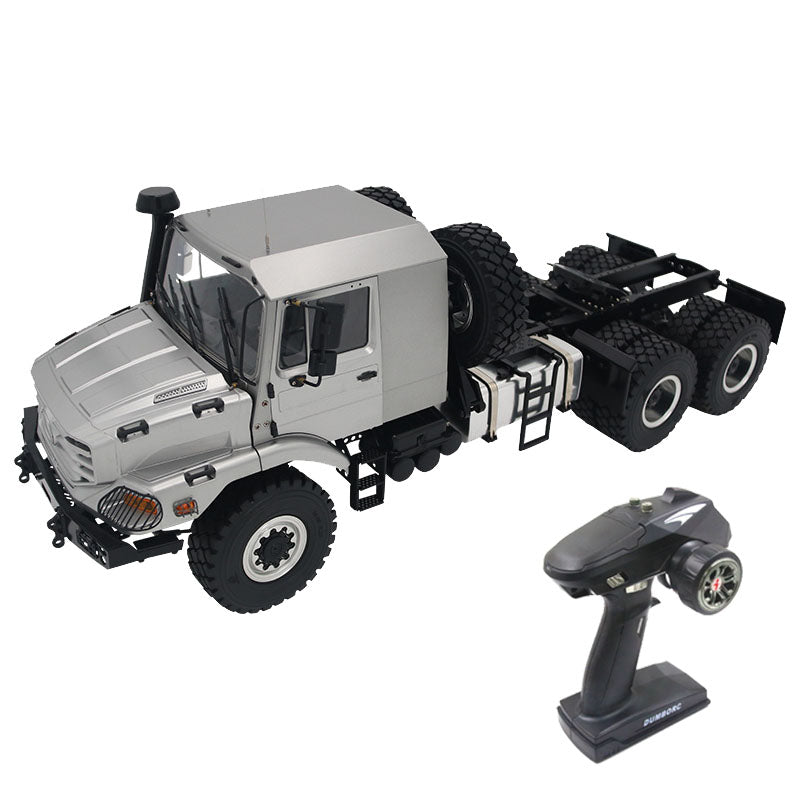

Remote control: DUMBO-X6

Electric speed control: hobbywing 1060

Servo: 0900

Motor: Brushed motor 35T

Battery specifications: 3S, 5200mAh, 11.1V, 25C or above; Battery compartment size: 142*45*40MM (battery size can be within this range) (battery not included, please prepare it yourself)

Weight: 6.8KG, plus remote control 7.1KG

Theoretical load: 10KG

Total load mass: 17KG

Notes: The remote control uses 6 No. 5 batteries, the main vehicle battery is 11.1V3S lithium battery or 12V battery, and the battery connector is XT60.

Operation steps: First turn on the remote control (the switch or knob of the remote control should be in the default position), then connect the main vehicle power supply, and wait for the signal sound to confirm before operating (about 5S). If you operate in advance, it is very likely that the ESC will enter the setting mode, causing the ESC to not work properly.

Main vehicle battery installation: First measure the voltage (the battery and power display need to be purchased separately, 3S lithium battery within the size of 142MM length, 45MM width and 40MM height), the voltage cannot be lower than 11.1V
