SW140B Brushless Turbine Engine 14KG Brushless Version for RC Turbine Plane

Swiwin

  • $2,252.25
Sendado kalkulita ĉe la kaso.

+ -

Swiwin SW140B 14KG w/ Brushless Pump

Compact and Lightweight

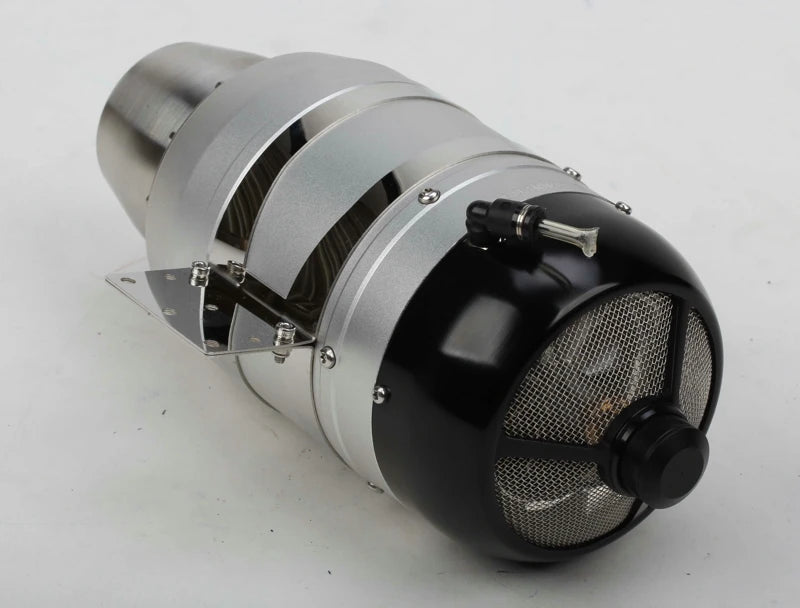

Built in FOD Screen
Brushless Starter
Color Screen GSU
32Bit Auto Restart ECU
Brushless Fuel Pump

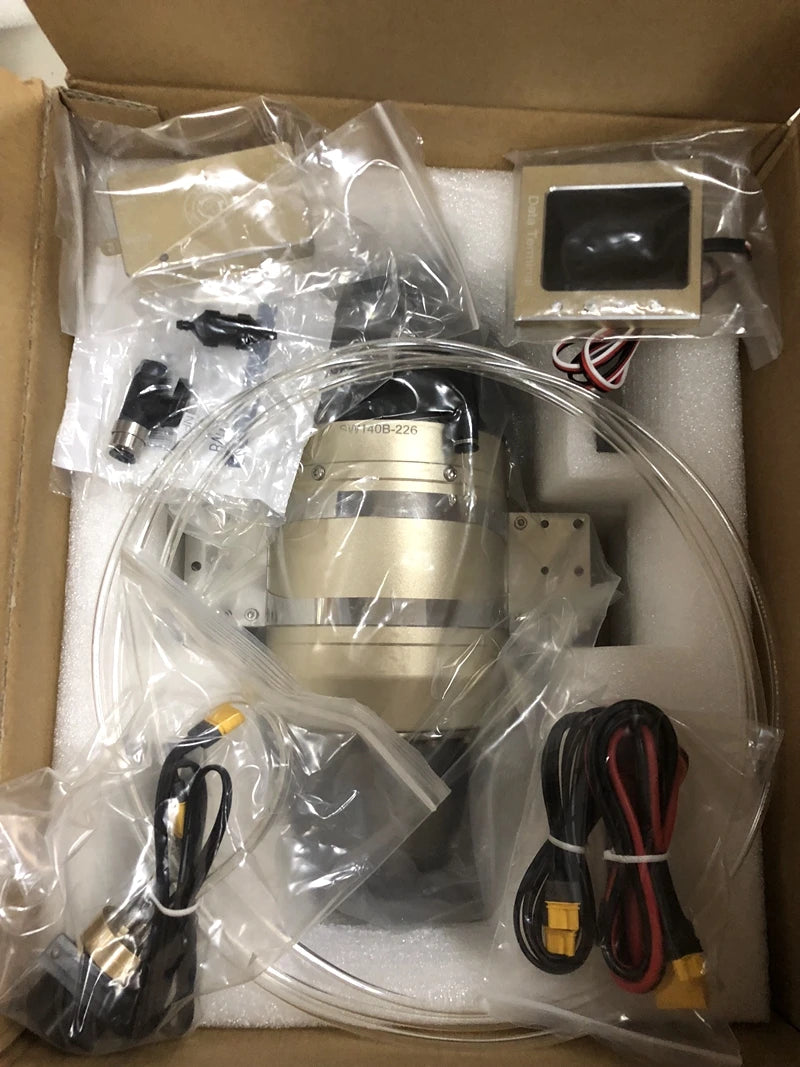

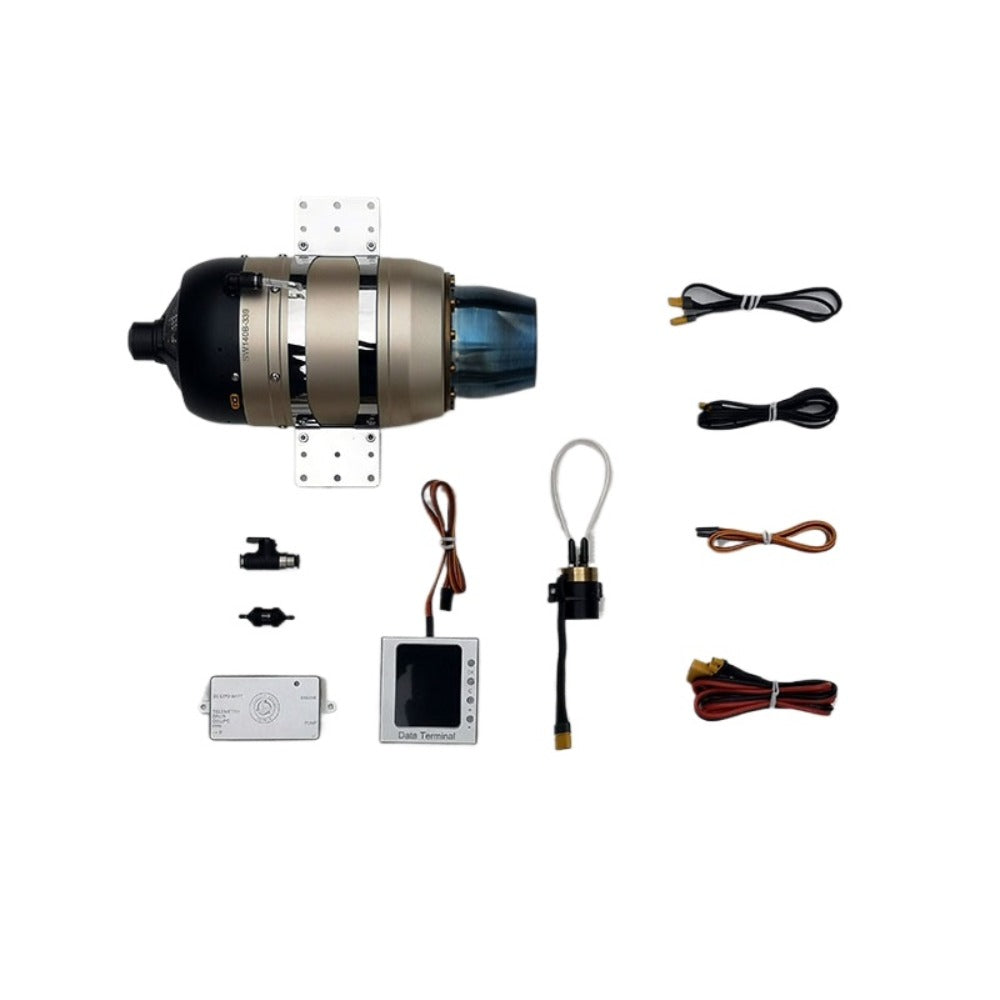

Package Includes

1x Engine
1x ECU (Engine Control Unit)
1x GSU (Ground Station Unit)
1x Fuel Pump (Brushless)
1x On/Off Fuel Valve Festo Fitting
1x Inline Fuel filter
1x Fuel Line
1x Turbine to ECU Cable
1x Power Cable
Specifications

Thrust    14 kg / 30.8 lb
RPM Range    38,000 r/min ~ 128,000 r/min
Rated Exhaust Temperature    700℃ / 1292 ℉
Fuel Consumption    325 ml/min / 11 oz/min @ 90% Power 115,200 RPM
Fuel    Kerosene, diesel , Jet A
Lubrication    5% kerosene, Jet A or 3% diesel
Start    Full auto-start
Restart    Auto-restart
Engine Weight    1255 g / 44.3 oz / 2.8 lbs
Diameter    100 mm / 3.9 in
Length    250mm / 9.8 in
Maintenance Interval    Every 25 hours
ECU Supply    3 cell li-po
Total Weight    1562 g / 55 oz / 3.4 lbs
