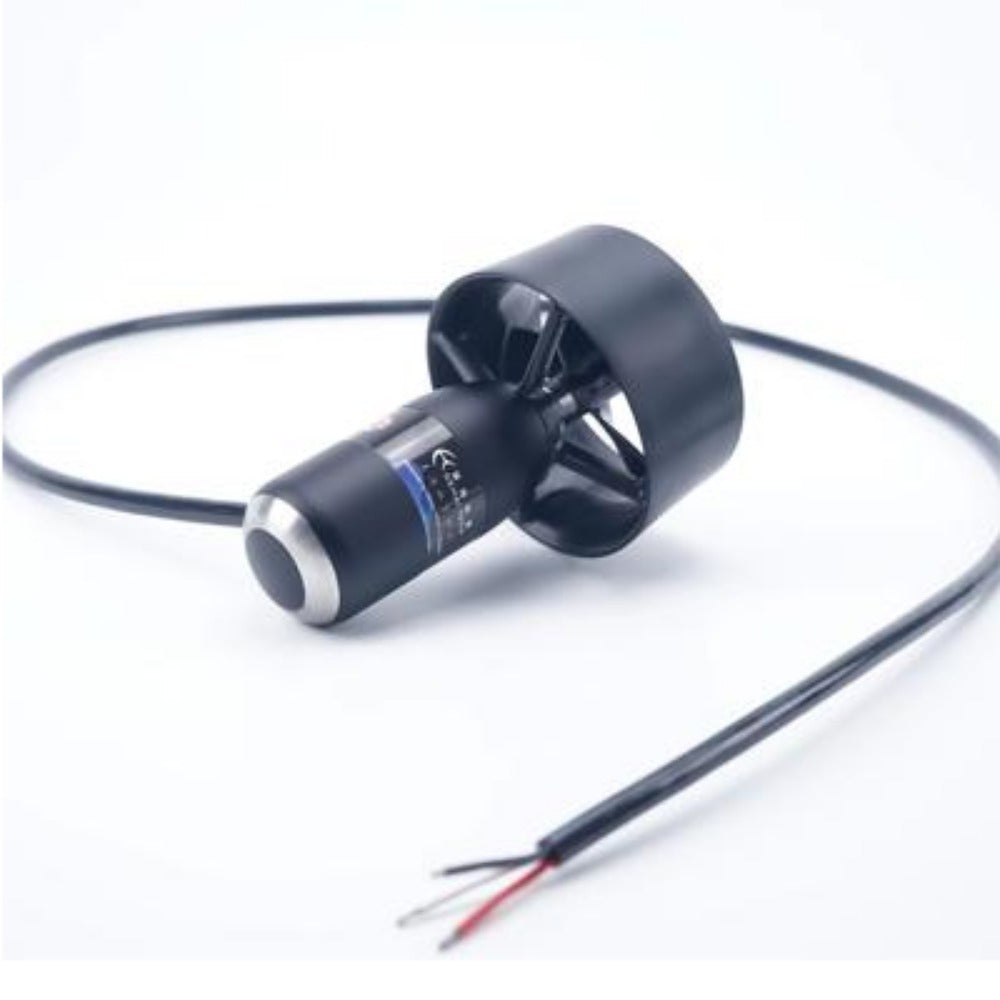

T60 Thruster Underwater Propeller with A Propeller Diameter 60mm Thrust Rating 30N

VAJJEXRC

  • $121.00
Sendado kalkulita ĉe la kaso.




DESCRIPTION

  • T60 underwater propeller with a propeller diameter of 60mm and a thrust rating of 30N.



Underwater Thruster - T60-30EDU

PRODUCT SPECIFICATION :

Type

T60-30EDU

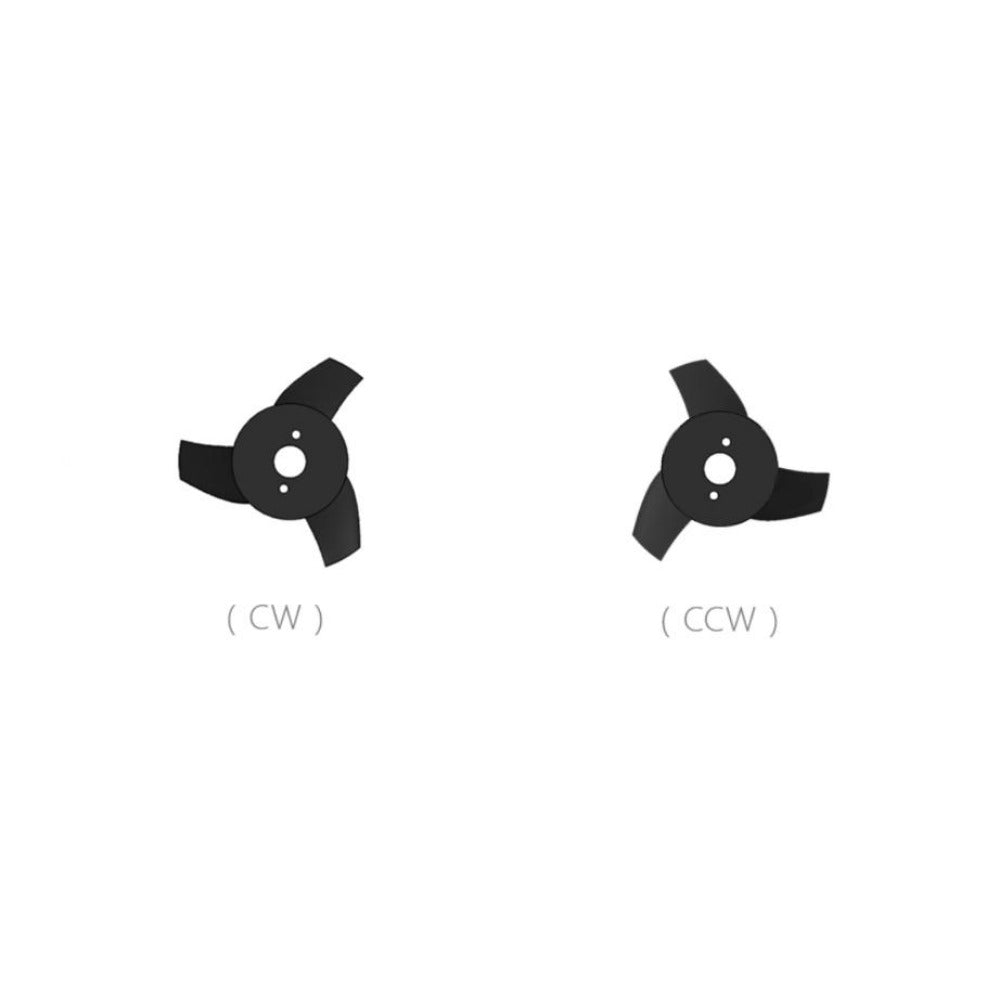

Propeller Configuration

cw/ccw

Type Version

T60-30EDU

Material of Propeller

PC

Type Description

Diameter of propeller: 60mm

Thrust: 30N

Material of Fairwater

PC

Material of Shell

Aluminum

Method of Sealing

Maintenance-free Seal

Material of Cable Sheath

TPU

Sealing Structure

Rotary Seal

Cable Specifications

OD: 6mm  Length: 1m Inner: 3×1.0mm²

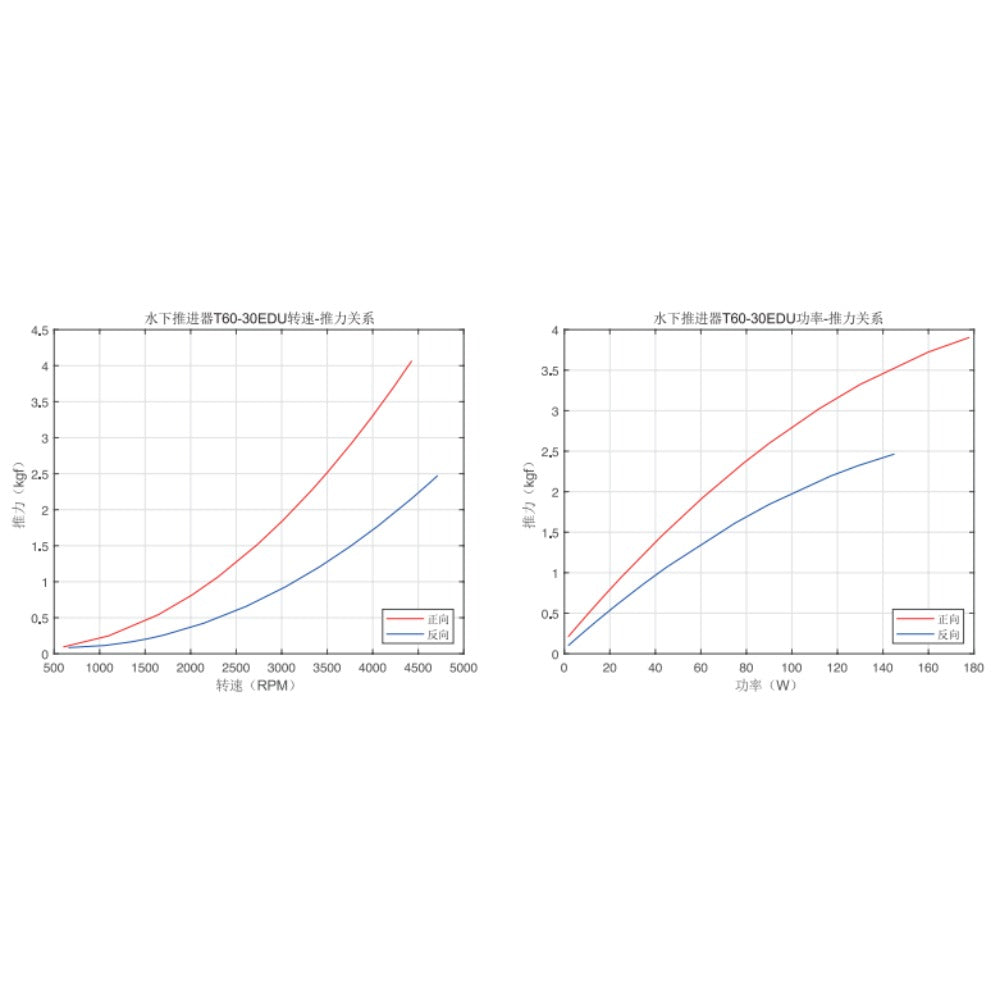

Maximum Thrust

3.8kgf (cw)   2.5kgf (ccw)

Material of Mounting Base

POM

Rated Voltage VDC

24VDC

Drive

External

Supply Voltage Range

11.1-25.2VDC

Depth

30m

Rated Power

178W

Thruster Weight without Base

320g in air / 200g in water

Motor Type

External Rotor Brushless Motor

Thruster Weight with Base

340g in air / 210g in water

Diameter of Spindle

4mm

Temperature

Storage Temperature: 0 to 40℃

Material of Spindle

316L Stainless Steel

Operating Temperature: 0 to 35℃

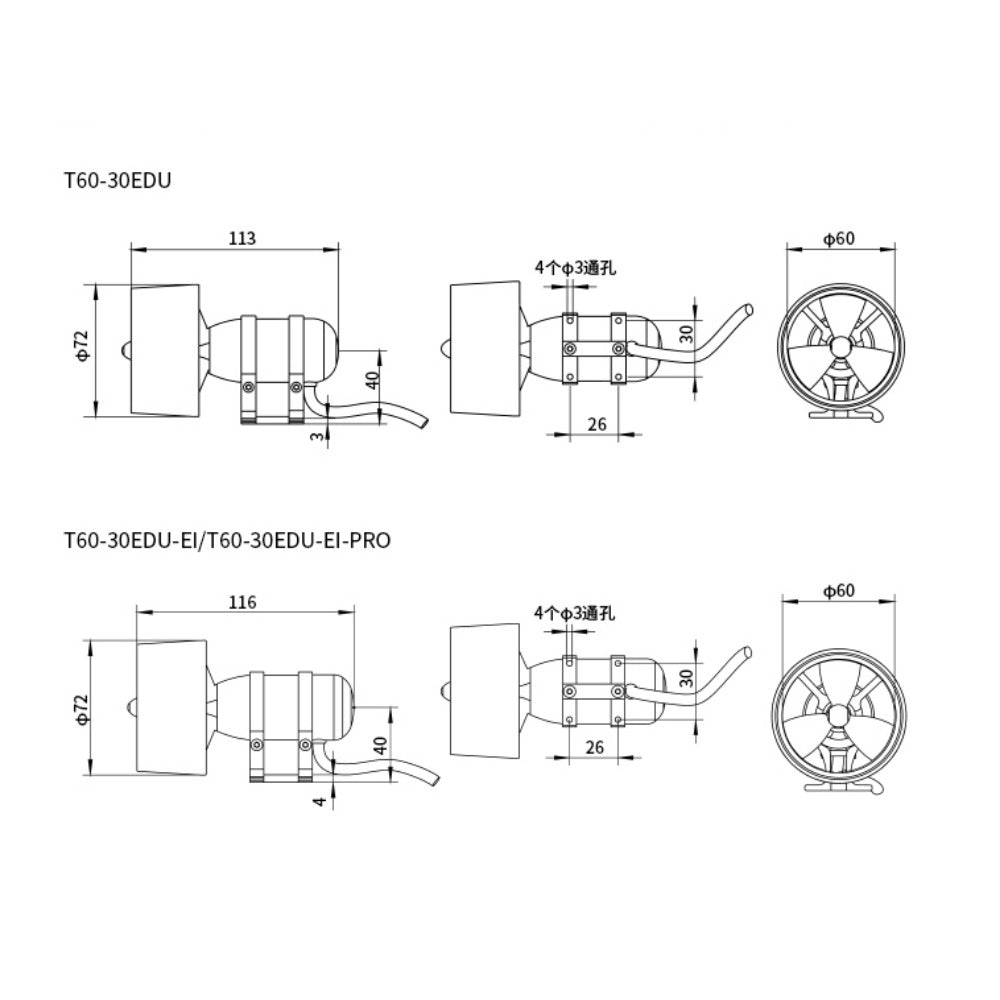

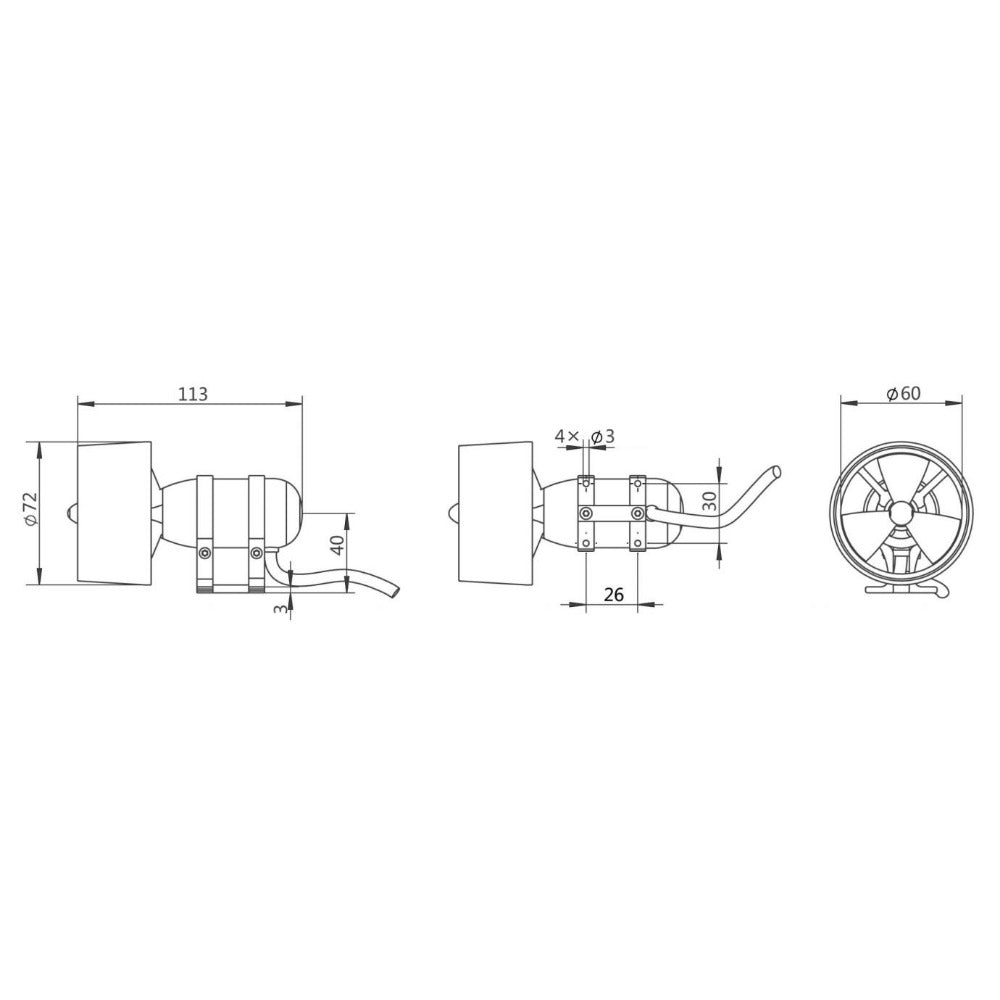

DIMENSION :
