Orlandoo Hunter 1/32 Mini RC Car OH32X02 KIT

Orlandoo Hunter

  • $115.83


Orlandoo Hunter 1/32 Mini  RC Car OH32X02 KIT
Product Introduction:

1. Pre-colored soft shell with thickness of 0.8mm, red and blue colors are optional
2. High strength PC material integrated pipe frame body
3. Front double fork arm coil spring independent suspension
4. Integrated bridge structure with four connecting rods for the rear closing tool arm
5. Each wheel is equipped with two shock absorbers (imitation damping internal spring shock absorbers, external coil spring shock absorbers)
6. Front and rear embedded anti-tilt bars
7. Fire extinguisher, oil drum, fan, dashboard and other decorative parts
8. Rim diameter: 18mm

Package Details:
Set 1: Frame (need to assemble yourself)
Set 2: Frame (need to assemble yourself)+ electric adjustable PH2.0 plug + motor PH2.0(N30-3000 RPM)+2.2g steering gear, suitable for friends with charger and remote control
Set 3: Frame (need to assemble yourself)+ electric adjustable PH2.0 plug + motor PH2.0(N30-3000 RPM)+2.2g steering gear + original charger, suitable for friends with remote control
Set 4: Frame (need to assemble yourself)+ electric adjustable PH2.0 plug + motor PH2.0(N30-3000 RPM)+2.2g steering gear + original charger + mini remote control + receiver, once assembled, you can play
D4L Set:Frame (need to assemble yourself) + motor PH2.0(N30-3000 RPM)+2.2g steering gear + original charger+ D4L remote control (integrated receiver, electric adjustment, light group, sound group function) ,once assembled, you can play
Set 5:Frame (self-assembly required)+ motor PH2.0(N30-3000 RPM)+ electric adjustment +2.2g steering gear + original charger + Dumbo remote control + receiver (6 channels) can be assembled to play

Note:
1. Age requirement is 14+
2. Spare parts are not assembled, and the shell is pre-painted
3. Prepare diagonal pliers, glue, pen knife, paint and other tools
4. The package does not contain any electronic equipment
5. Add motor, steering gear, battery, transmitter, receiver, can be moved after electric adjustment





The OH32X02 has a body size of 168mm*79mm*59mm and a 0.5mm thick pre-painted shell
(red and blue + transparent optional) to provide more effective flexible collision protection for the overall body


Compared with Oh32x01 more complex pipe rack body. From the perspective of technology,
3 d printing is the most simple way, but in order to achieve reliable strength and hardness,
cannot only use a simple 3 d printing to complete it, and finally still choose to use
3d printing + PC vacuum injection to meet the requirements of OH32X02 trophy truck body strength.

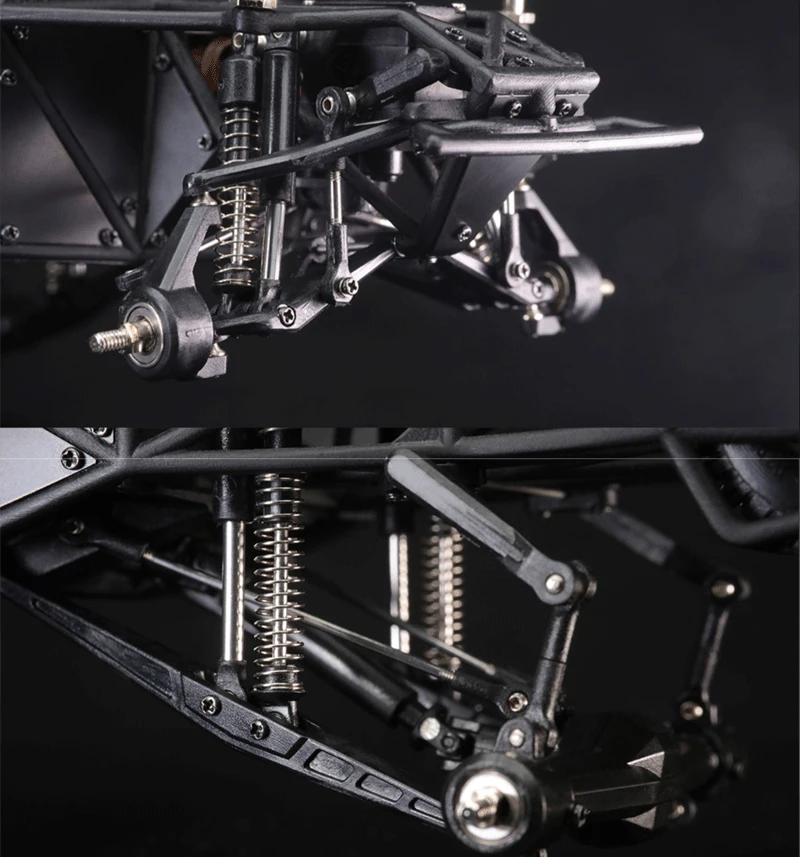

Front suspension is double helical spring A arm independent suspension,

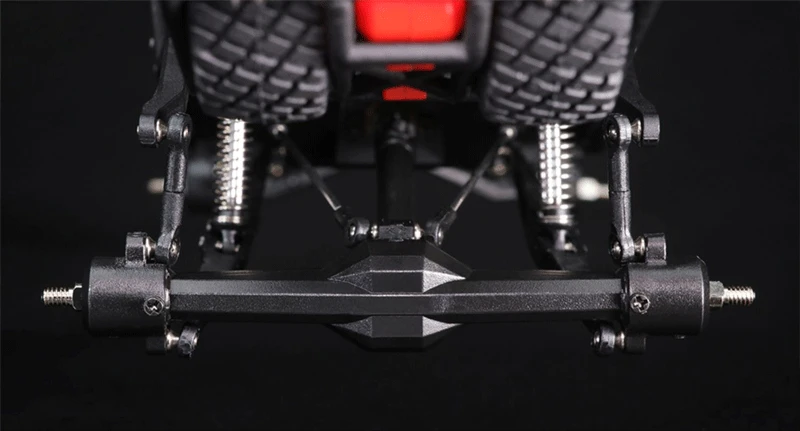

followed by the simulation connection of double arm four-bar suspension bridge as A whole.
Before and after hanging on each side is equipped with two shock absorber, damping spring
in the imitation of damping Jane outside helical spring and shock absorber.


After the front suspension can travel 13 mm, suspension travel is 26 mm


Big trophy truck schedule makes its flexibility and cornering performance affected, to curb the bending roll,
front and rear suspension is to restore the anti-roll bar

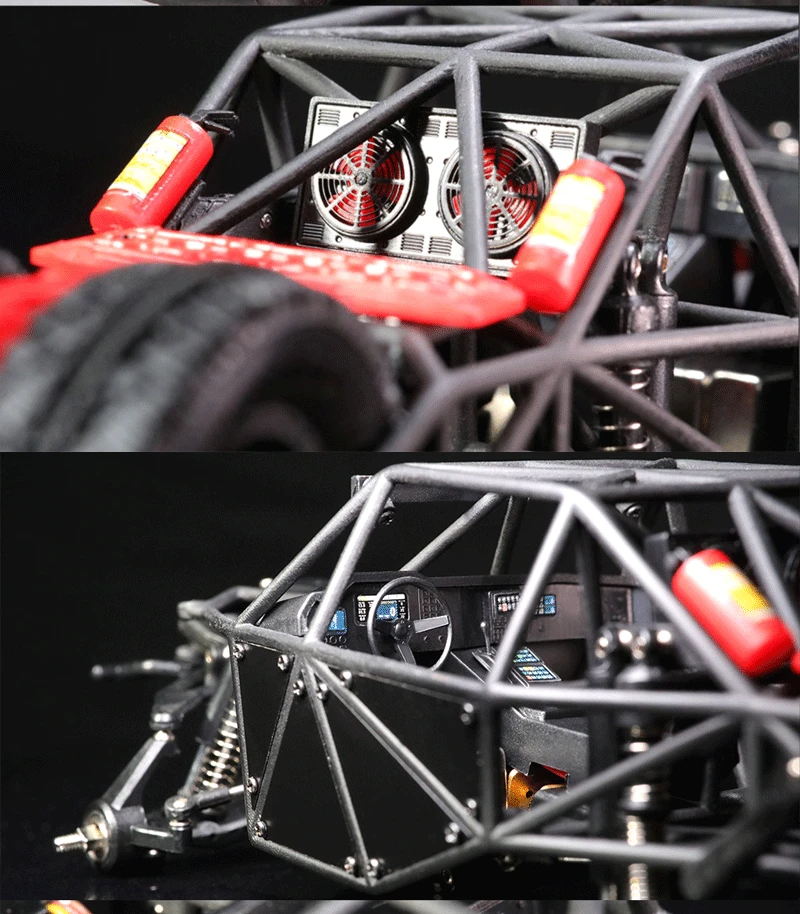

On detail OH32X02 also fully presented a trophy truck should have configuration: the rear of

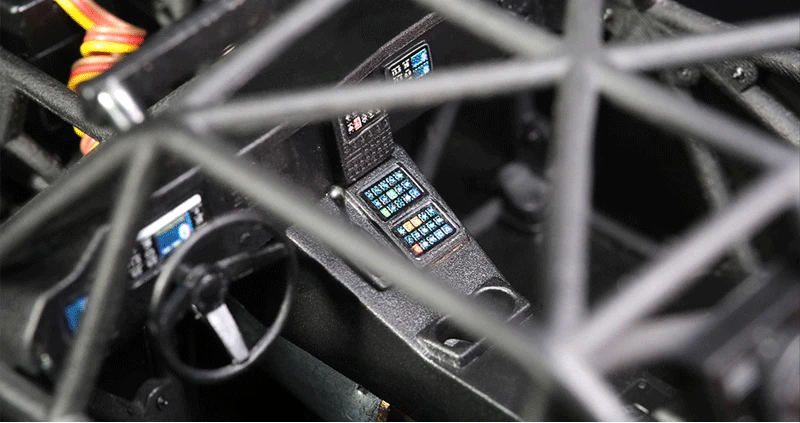

the spare tire, drop tank, to erase board, fire extinguisher, grille, even dash interior.




Spare tire weight is necessary for perfect posture. Don't waste any counterweight space,

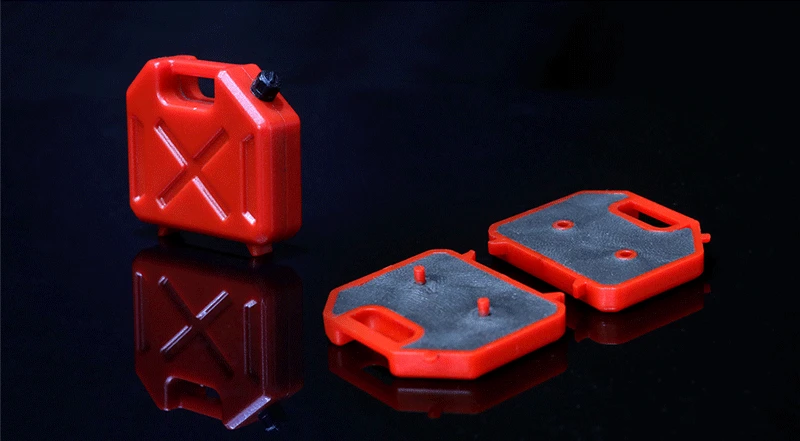

including inside the auxiliary fuel tank, or even inside the fire extinguisher. (Can be filled with Plasticine)


For even more perfect posture, you can also upgrade the new damper shock!





Our shop is an authorized dealer of genuine Orlandoo Hunter brand.
Please identify the authentic products.
Thank you for liking Orlandoo Hunter! We will continue to bring more interesting and interesting products.

Thank you!
