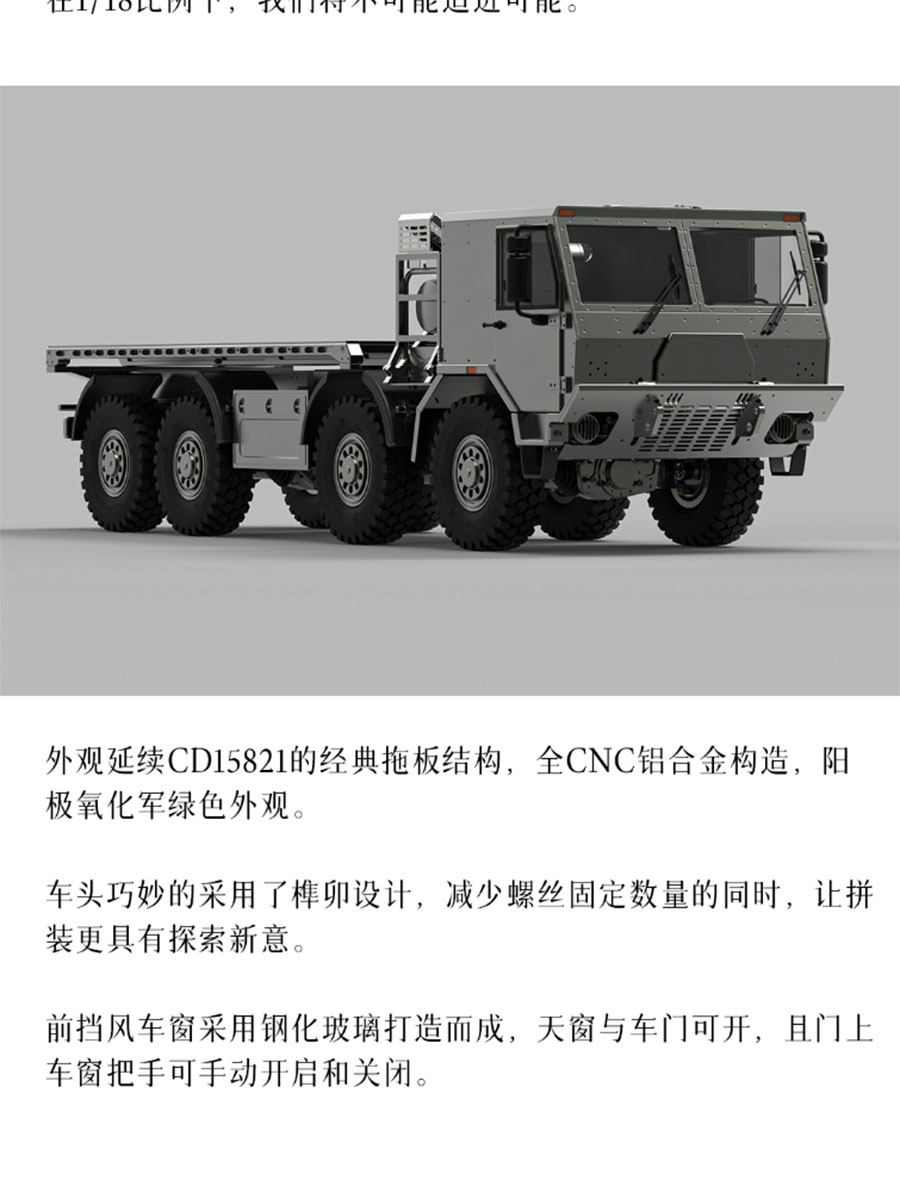

CAPO TATRA 1/18 CUB3 8x8 Rc Truck KIT with Air Suspension Lighting System

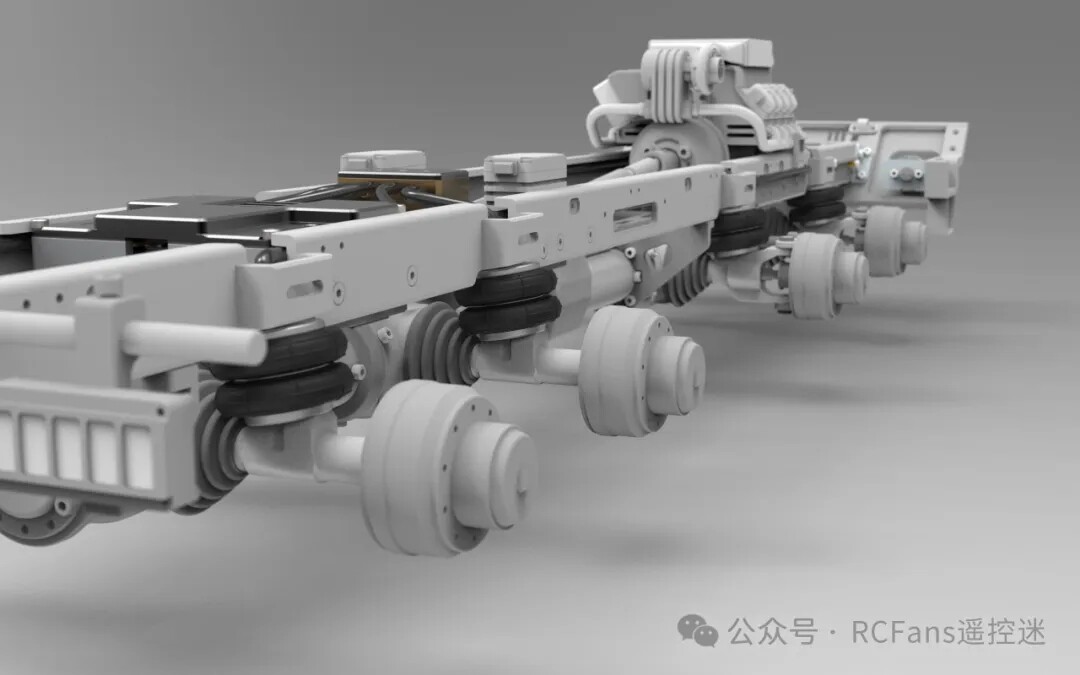

Our KIT version includes a full set of 8-wheel dual-cylinder air suspension configuration, no additional purchase required

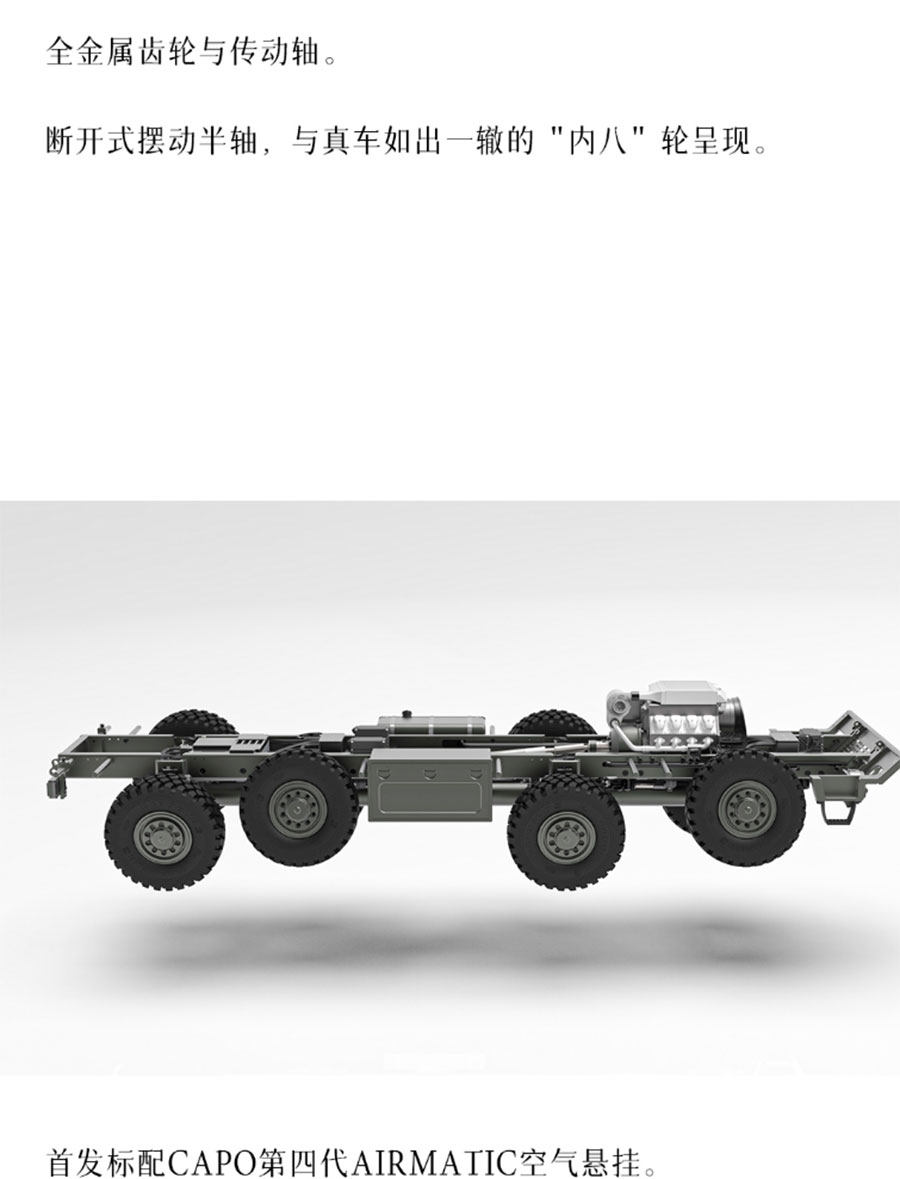

The spine is pre-installed, only electrical debugging and car shell assembly are required

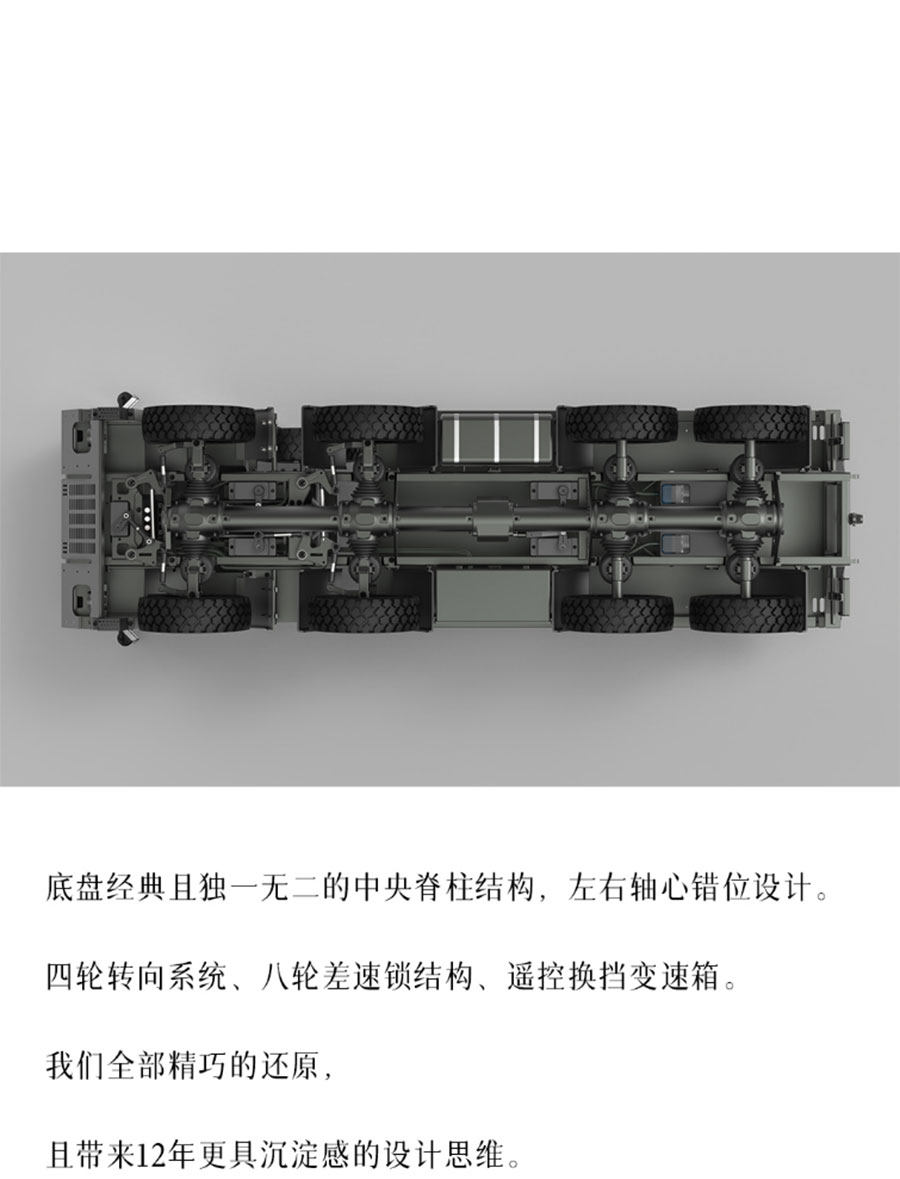

Four-wheel steering, eight-wheel differential lock, and shift gearbox are all available
Air suspension does not need to be assembled, plug and play
Anodized shell does not require painting

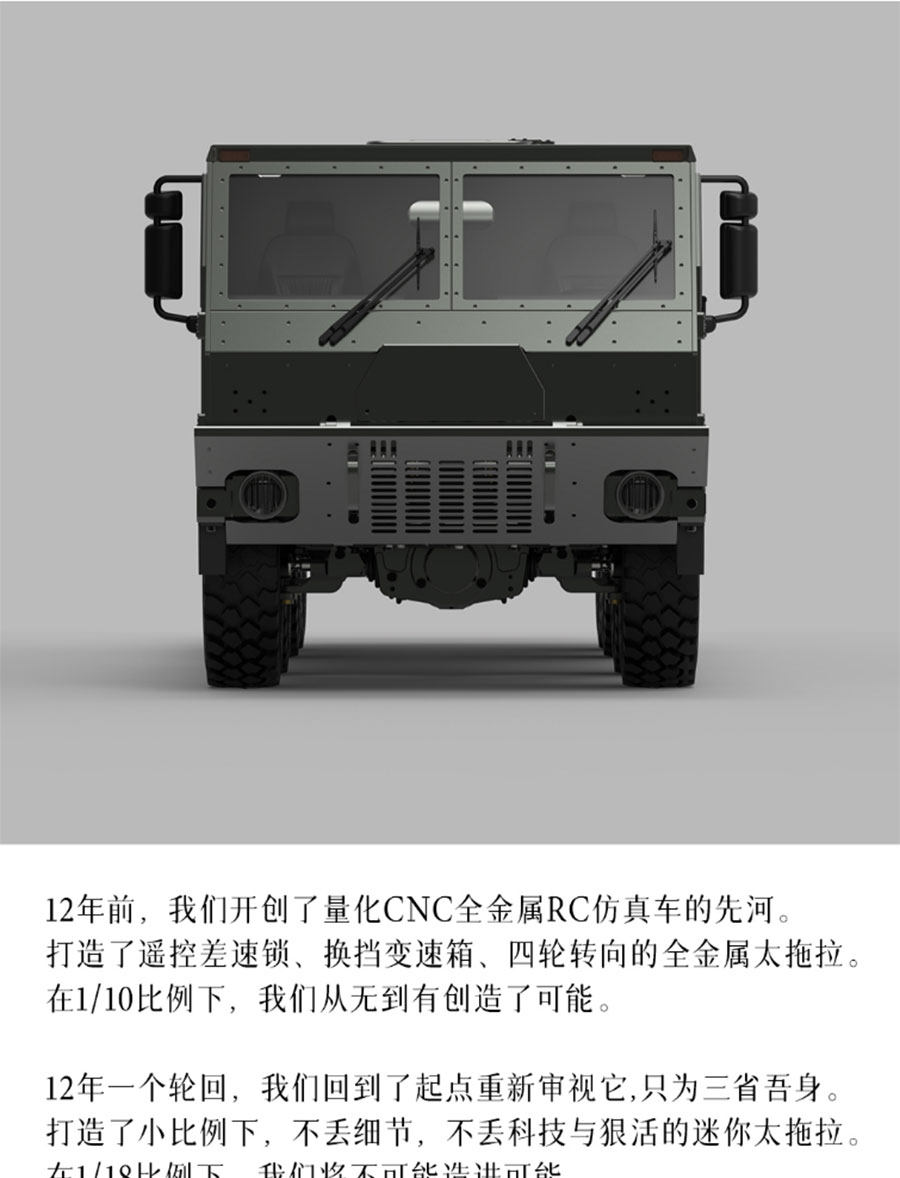

Real tempered glass for the front windshield

cub3  1. Steering 2 servos  2. 2 locks 1 servo in front and 2 locks 1 servo in the back, a total of four differential locks, 3  High and low speed 1 servo   A total of five servos 4  One channel for light group, 5  2 channels for pneumatic  6 Throttle 1 channel           9 channels
CAPOCUB3 electronic equipment recommendations
Motor ESC set
MADGEAR 50T brushed motor + ESC set
This set is suitable for primary settings, taking into account both the vehicle's trotting and low speed. It is the most balanced configuration for the vehicle after testing different reduction ratios.
MADGEAR 70T brushed torque-increasing motor
Provides better low-speed linearity, but speed loss. Suitable for heavy installation, building vehicle roll-on and roll-off systems, vehicle-mounted guns and other upgrade options.

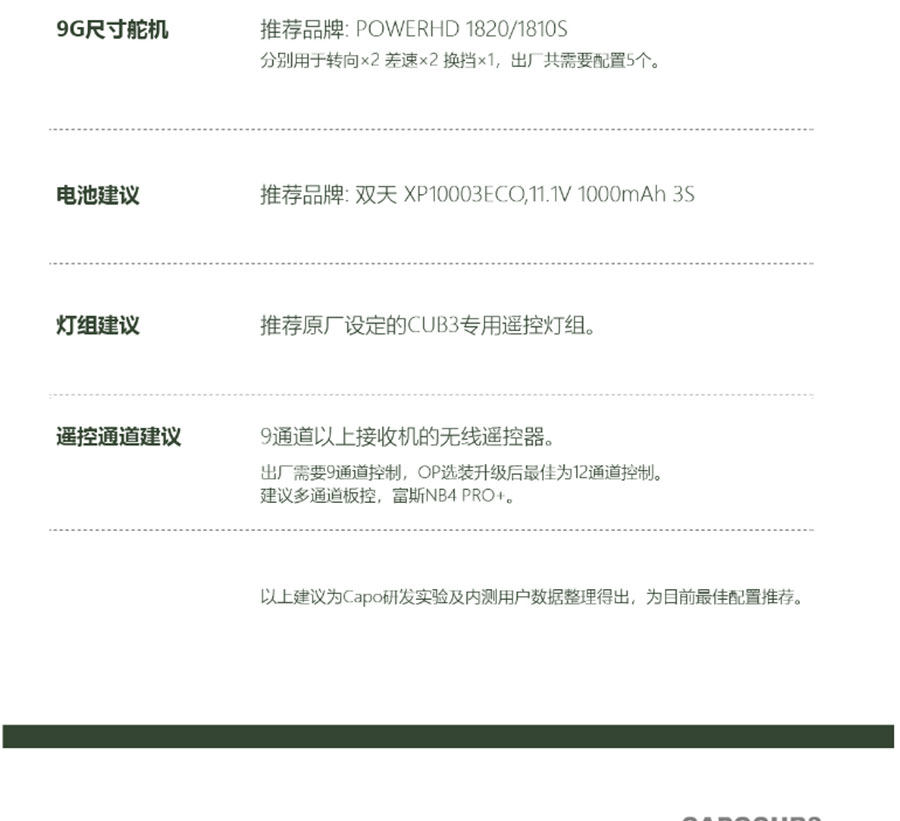

9g size servo
Recommended brand: POWERHD 1820/1810S
Respectively used for steering × 2 differential × 2 shift × 1, a total of 5 need to be configured at the factory.

Battery recommendation
Recommended brand, Shuangtian XP10003ECO, 11.1V 1000mAh 3S

Light set recommendation
The original CUB3 dedicated remote control light set is recommended.

Remote control channel recommendation
9-channel control is required at the factory, and 12-channel control is the best after the OP optional upgrade. It is recommended to use a multi-channel board controller, such as Fushi NB4 or NB4 PRO+

。
