Micro Hydraulic Cylinder for JDM 188 1/14 Rc Hydraulic Loader

JDM

  • $38.51

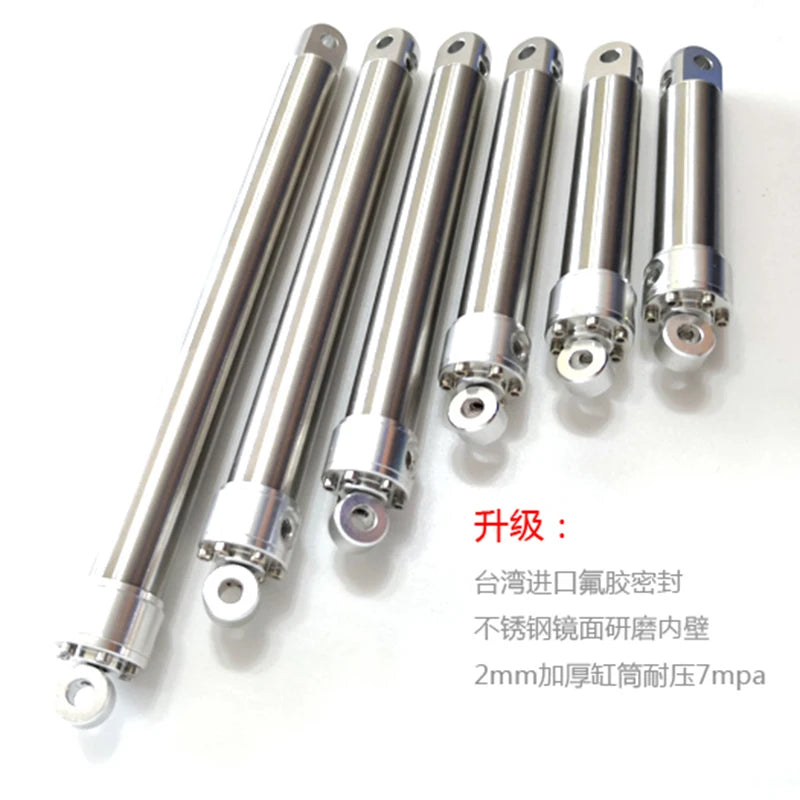

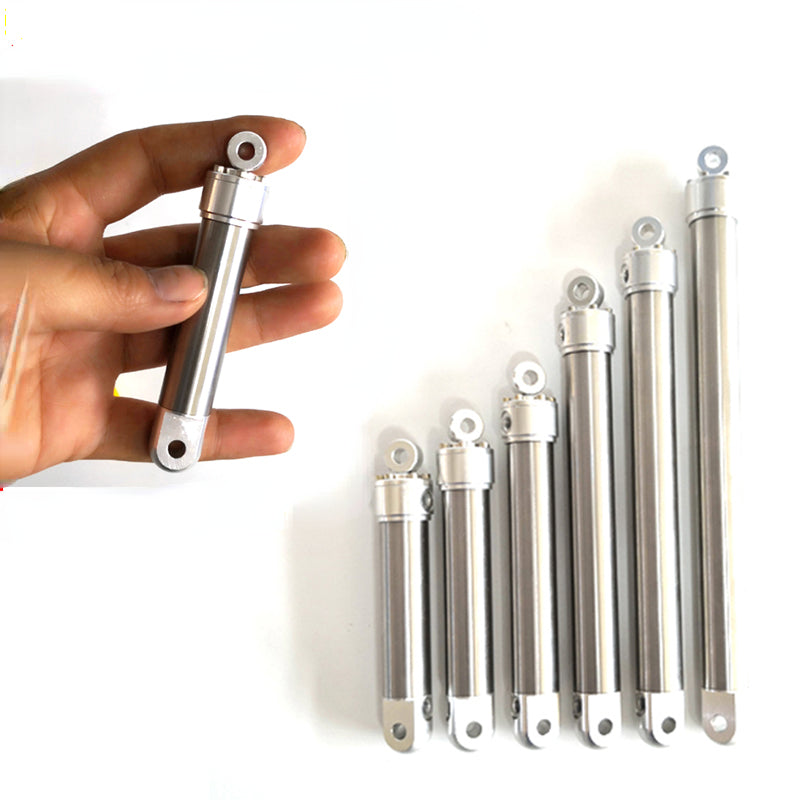

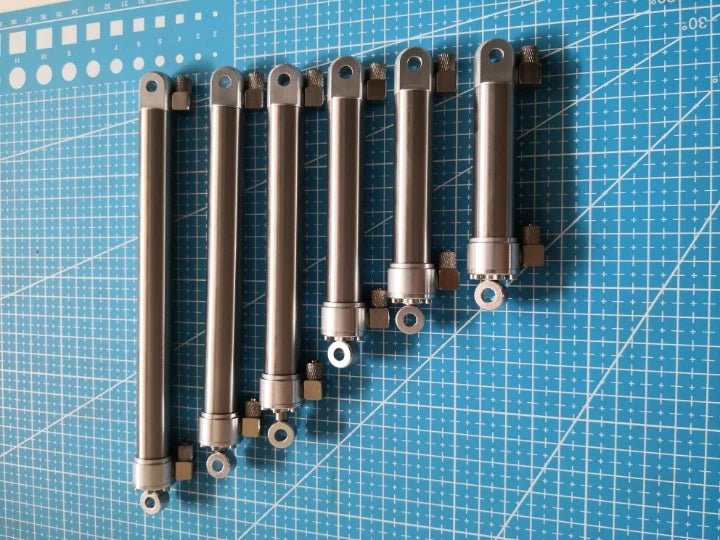

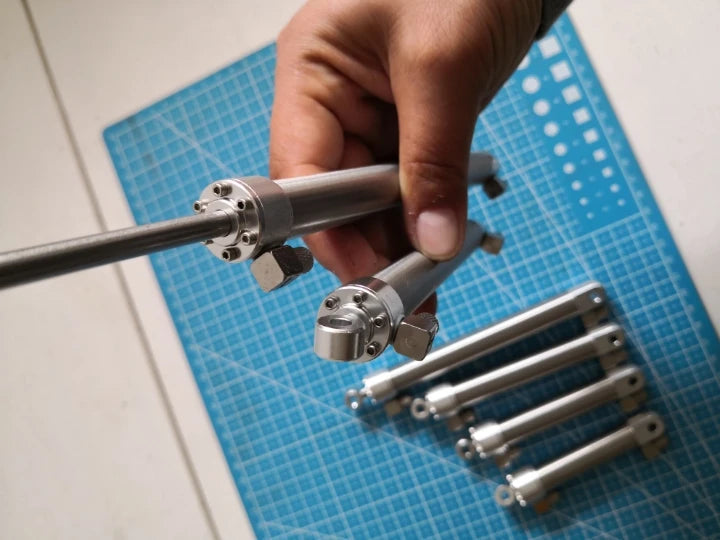

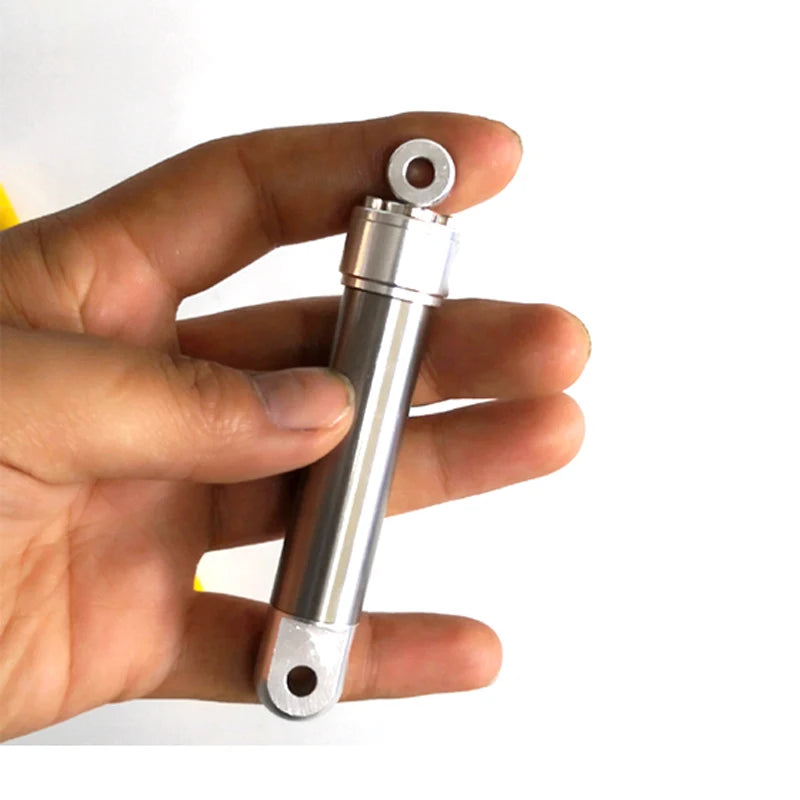

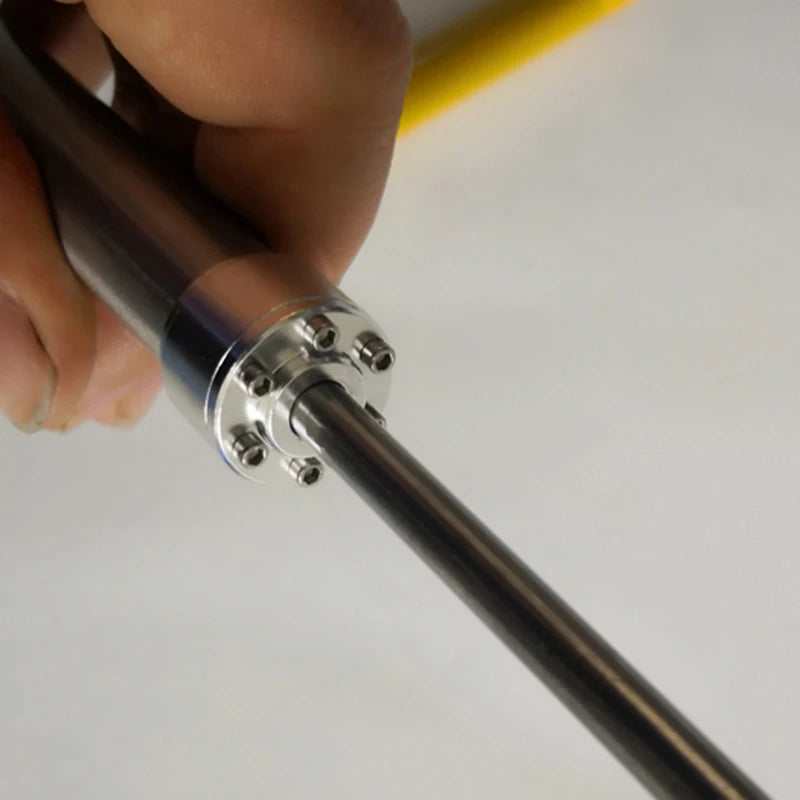

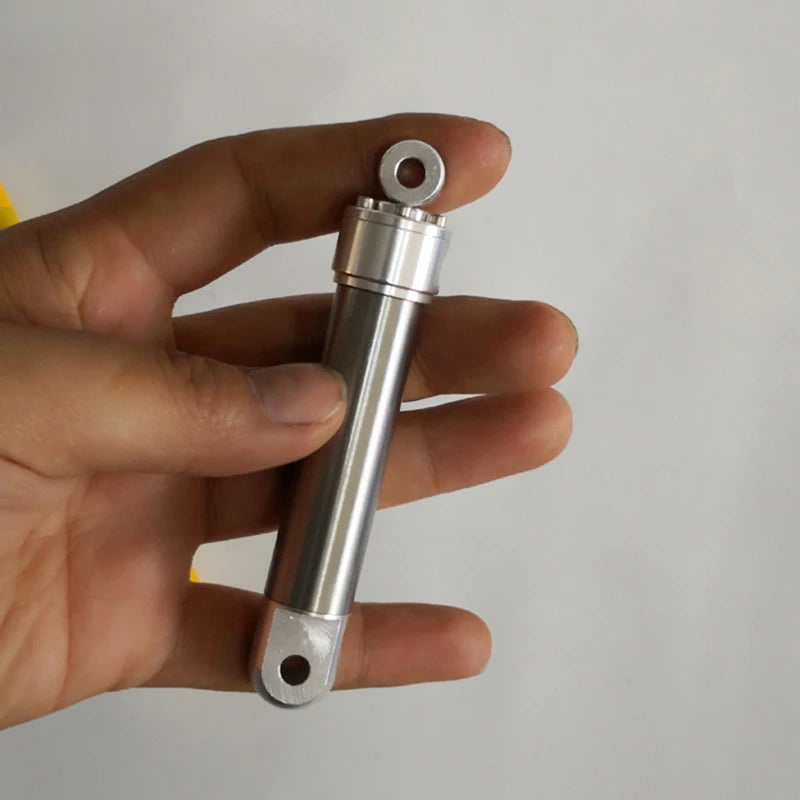

Hydraulic Cylinder for JDM 188 1/14 Rc Hydraulic  Loader
Material: Metal aluminum alloy
Color: Silver
Quantity:1pcs
Suitable for: 1/14 Tamiya RC Truck and RC excavator etc.
The outer diameter of the cylinder is 16mm! The inner diameter is 12mm

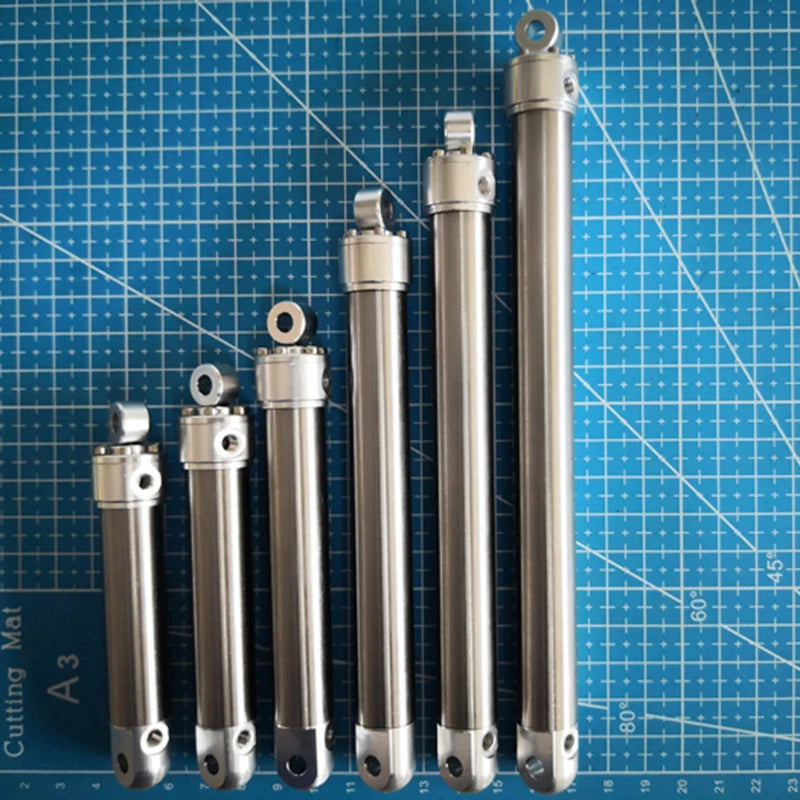

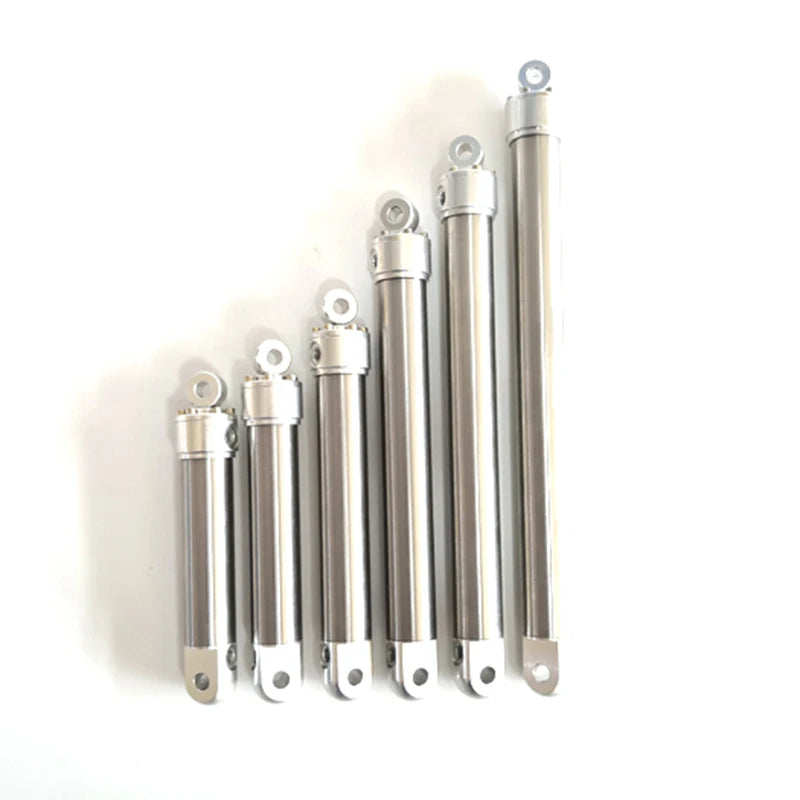

size description,

For a cylinder with a stroke of 60mm, the distance between the front and rear holes without protrusion is 60+54=114mm, and the distance between the front and rear holes after protrusion is 114+60=174.

For a cylinder with a stroke of 35mm, the distance between the front and rear holes without protrusion is 35+54=89mm, and the distance between the front and rear holes after protrusion is 89+35=124.

For a cylinder with a stroke of 45mm, the distance between the front and rear holes without protrusion is 45+54=99mm, and the distance between the front and rear holes after protrusion is 99+45=144.

For a cylinder with a stroke of 90mm, the distance between the front and rear holes without protrusion is 90+54=144mm, and the distance between the front and rear holes after protrusion is 144+90=234.

For a cylinder with a stroke of 110mm, the distance between the front and rear holes without protrusion is 110+54=164mm, and the distance between the front and rear holes after protrusion is 164+110=274.

For a cylinder with a stroke of 135mm, the distance between the front and rear holes without protrusion is 135+54=189mm, and the distance between the front and rear holes after protrusion is 189+135=324.
