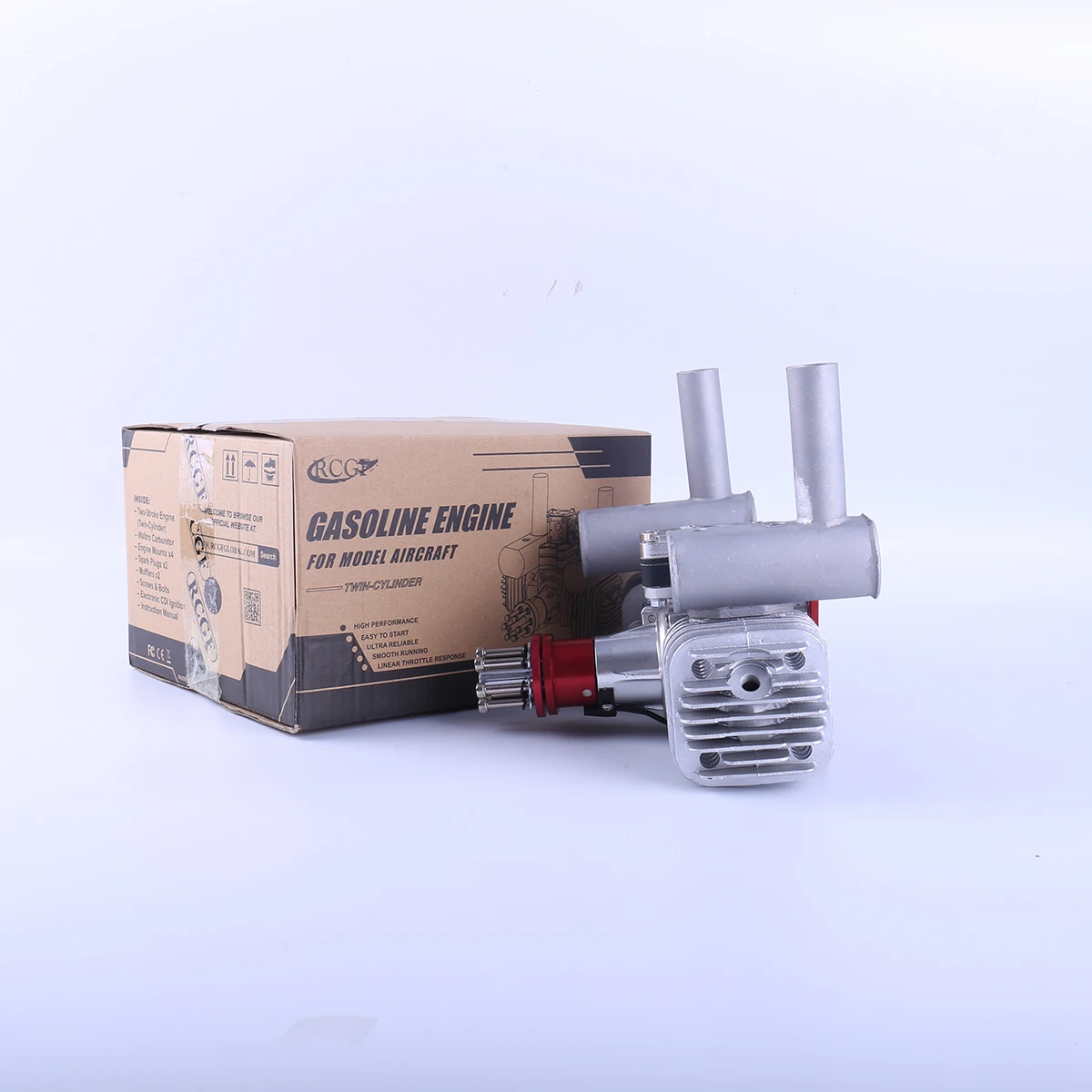

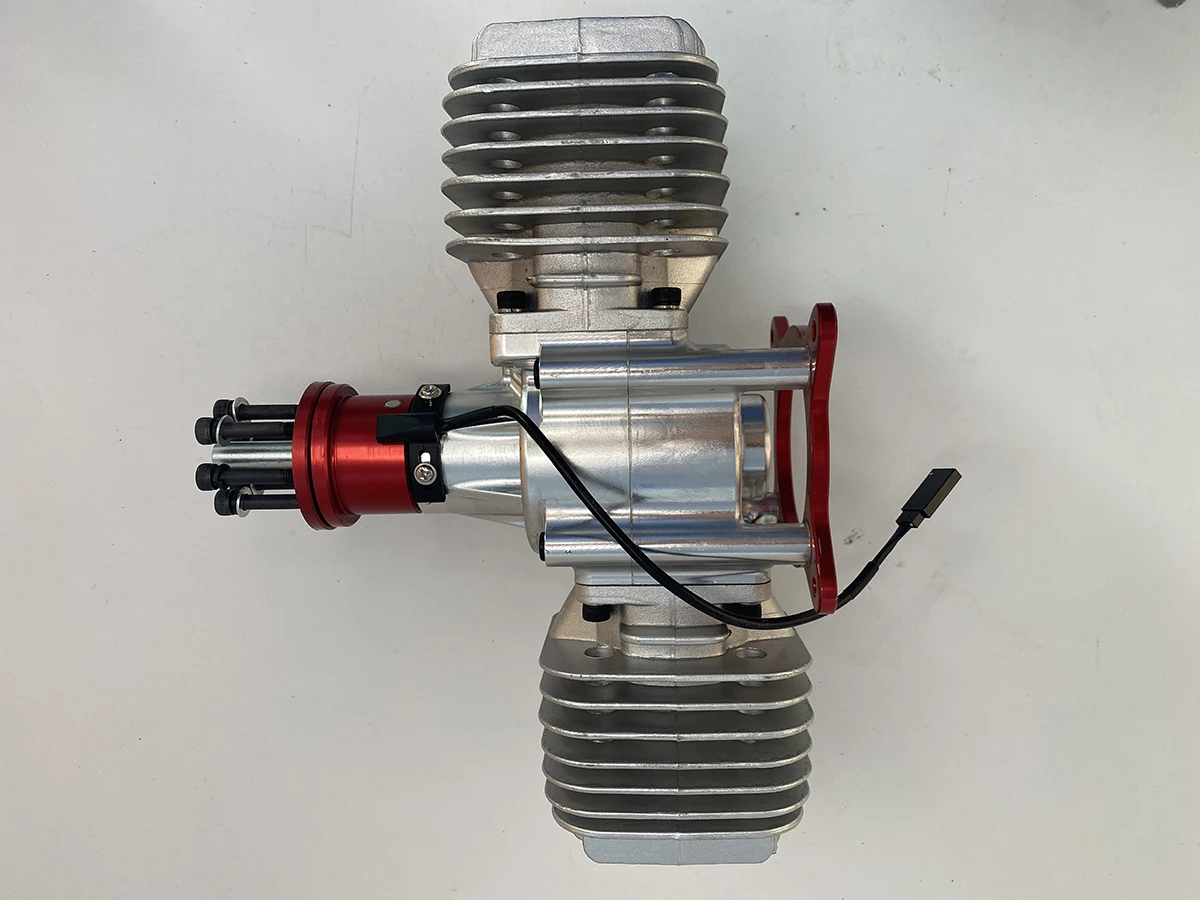

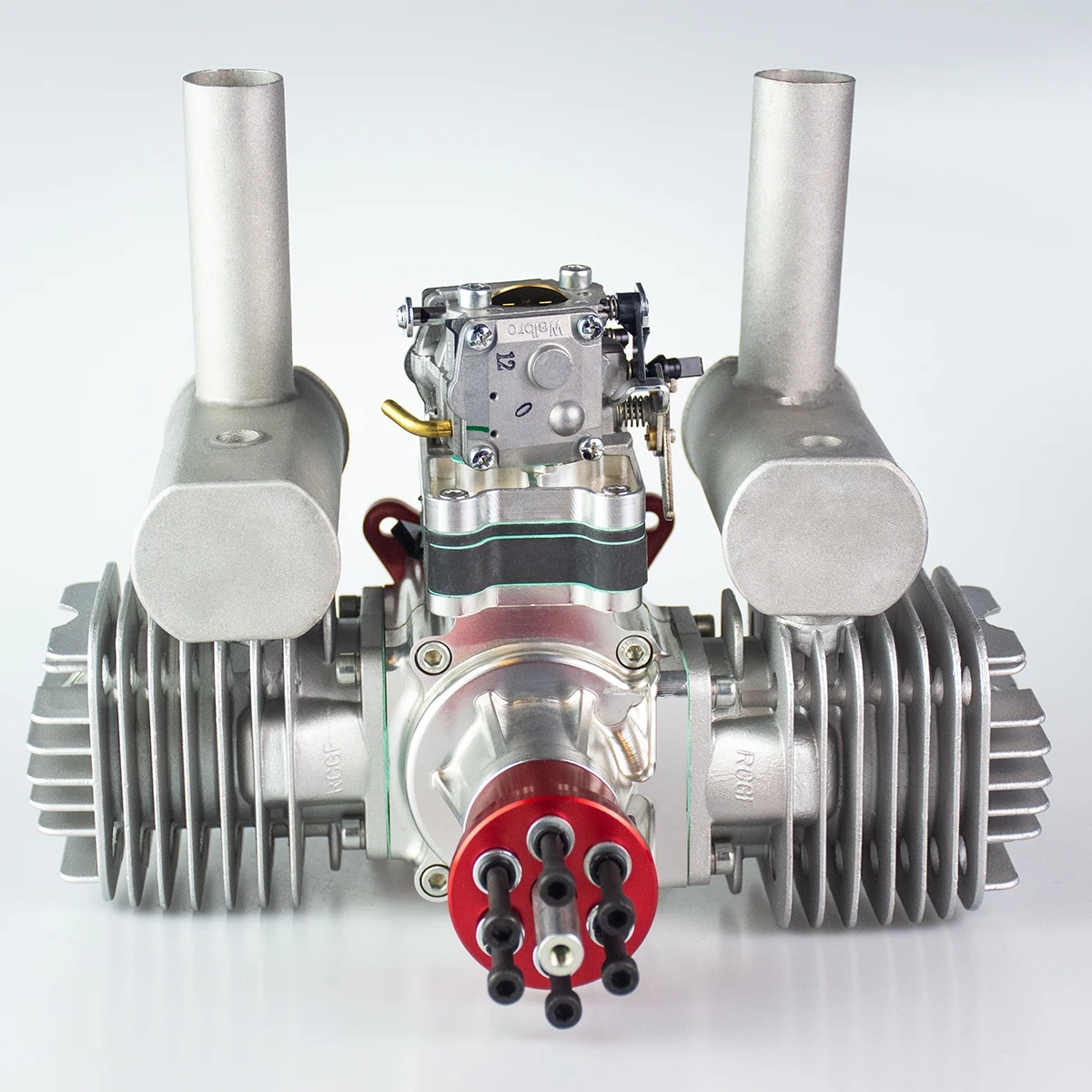

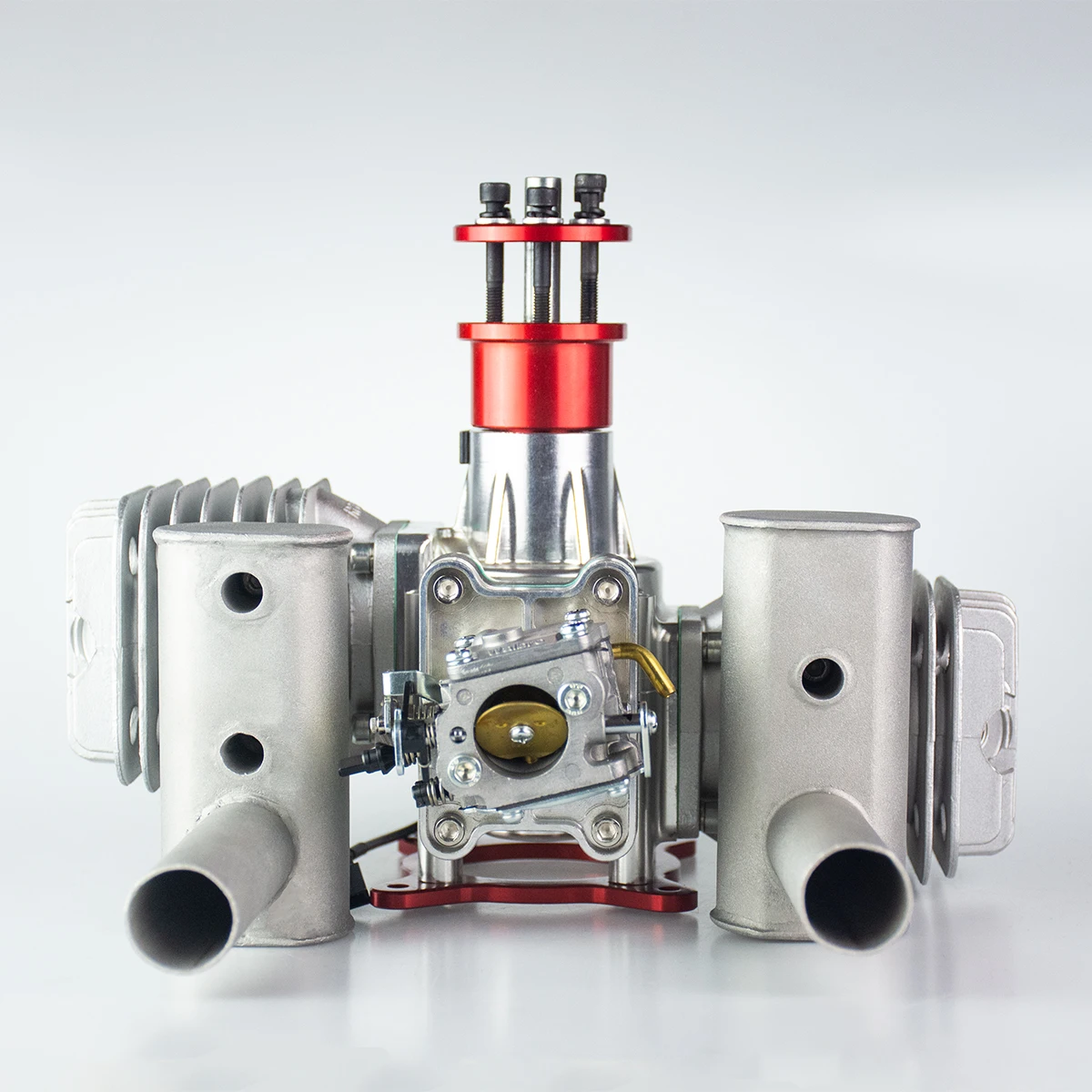

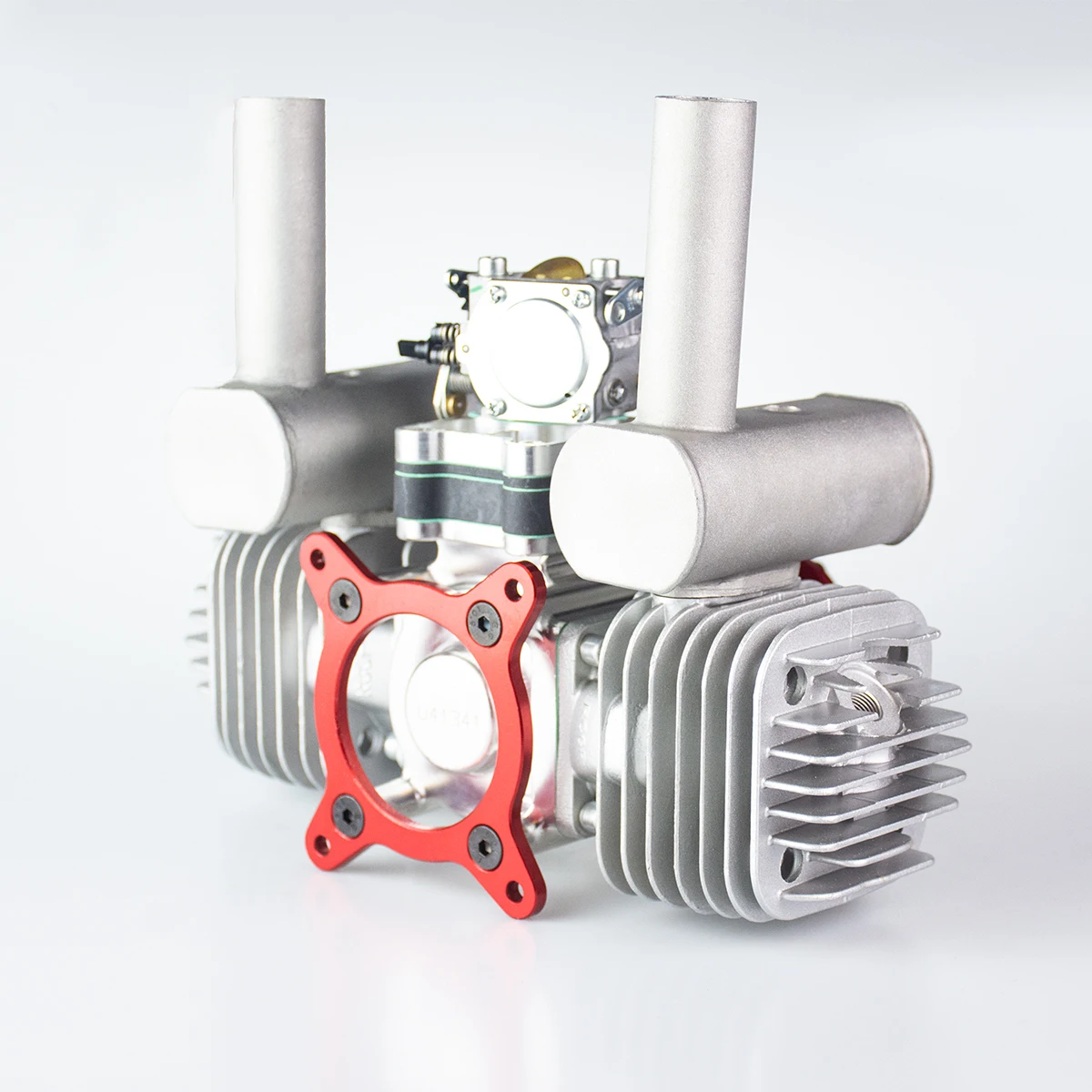

RCGF 120cc Twin Cylinder Petrol Gasoline Engine for RC Airplane

RCGF

  • $539.55


.RCGF 120cc Twin Cylinder Petrol Gasoline Engine for RC Airplane
Brand: RCGF
.Material: Metal
.Model Type: 2-stroke piston valve type gasoline engine for airplane
.Cooling System: Air cooling

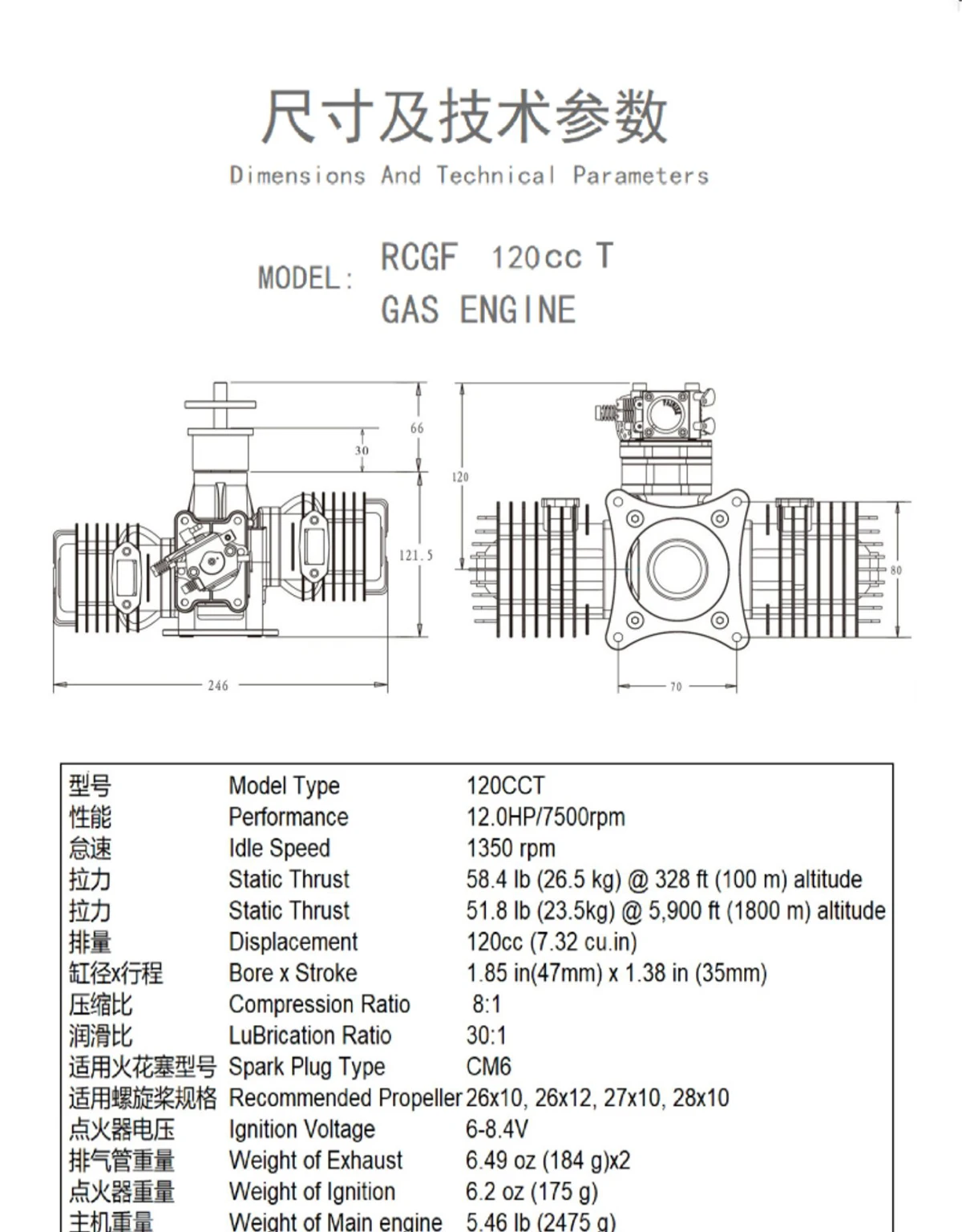

.Performance: 12HP/7500rpm
.Idle Speed: 1350rpm
.Static Thrust: 58.4 lb (15kg) @328 ft (100m) height, 51.8 lb (13kg) @5900 ft (1800m) height
.Displacement: 120cc (7.32cu in)
.Bore Diameter x Stroke (mm): 1.85in(47mm) x 1.38in(35mm)
.Compression Ratio: 8:1
.Lubrication Ratio: 30:1
.Carburetor: Walbro
.Ignition Method: DC-CDI
.Power Supply: 6-14V
.Spark Plug: NGK-CM6
.Requirements: Gasoline, 2-stroke engine oil, ignition battery and propeller
.Gasoline: Pre-mixed fuel, 25-40 gasoline: 1 engine oil (recommended 30:1)
.Lubricant: 2-stroke engine oil
.Recommended Propeller: 26 x 10, 26 x 12, 27 x 10, 28 x 10
.Exhaust Pipe Weight: 6.49oz (184g) x 2
.Igniter Weight: 6.2oz (175g)
.Host Weight: 5.46 lb (2475 g)
.Product Weight: 2475g
.Packing: Box

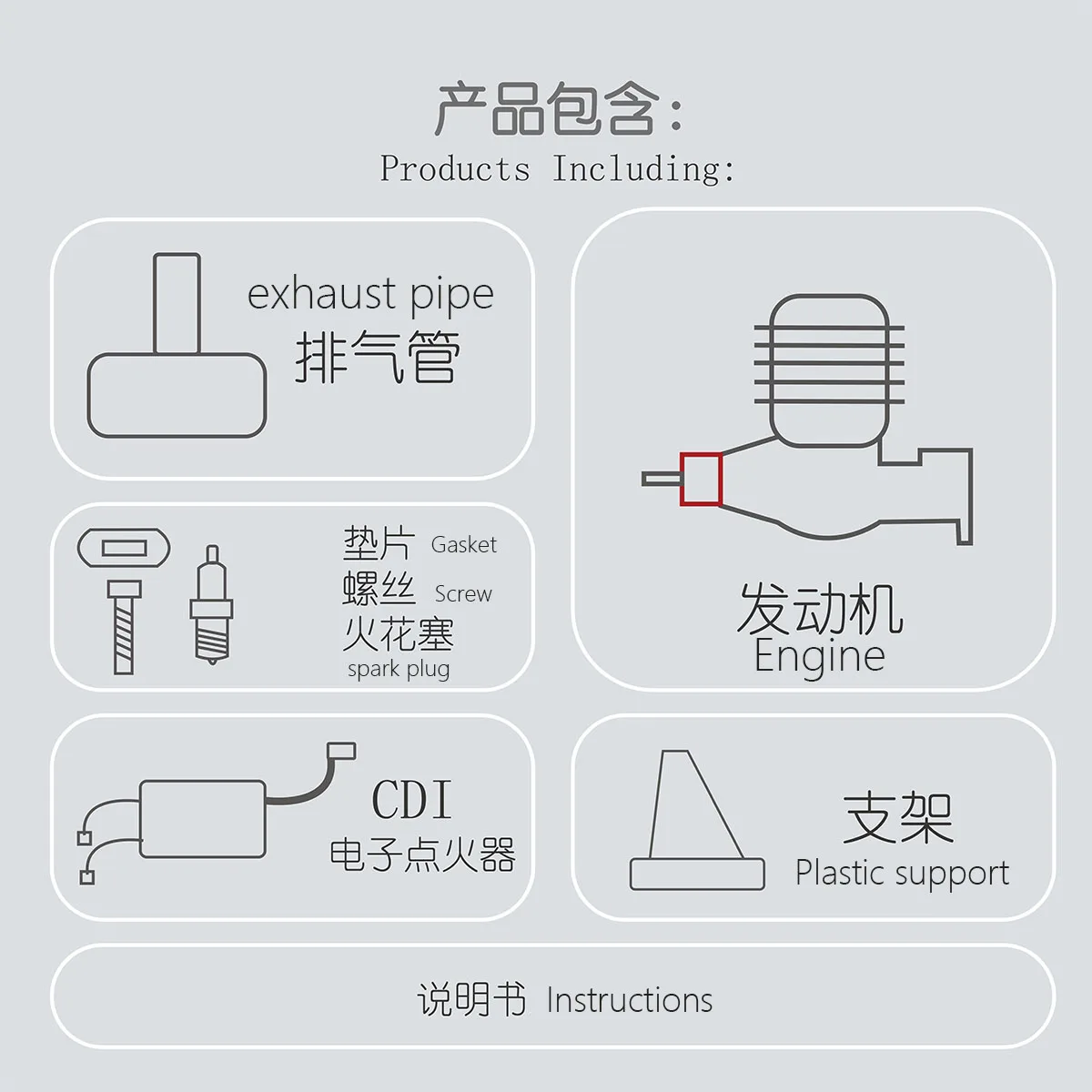

Package Content:

.1 x Engine
.1 x Exhaust Pipe
.1 x CDI Igniter
.1 x Spark Plug
.1Set x Screw
.1Set x Gasket
.1Set x Bracket
.1 x User Manual
